32 Channel Gas Alarm Controller
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 10,000+

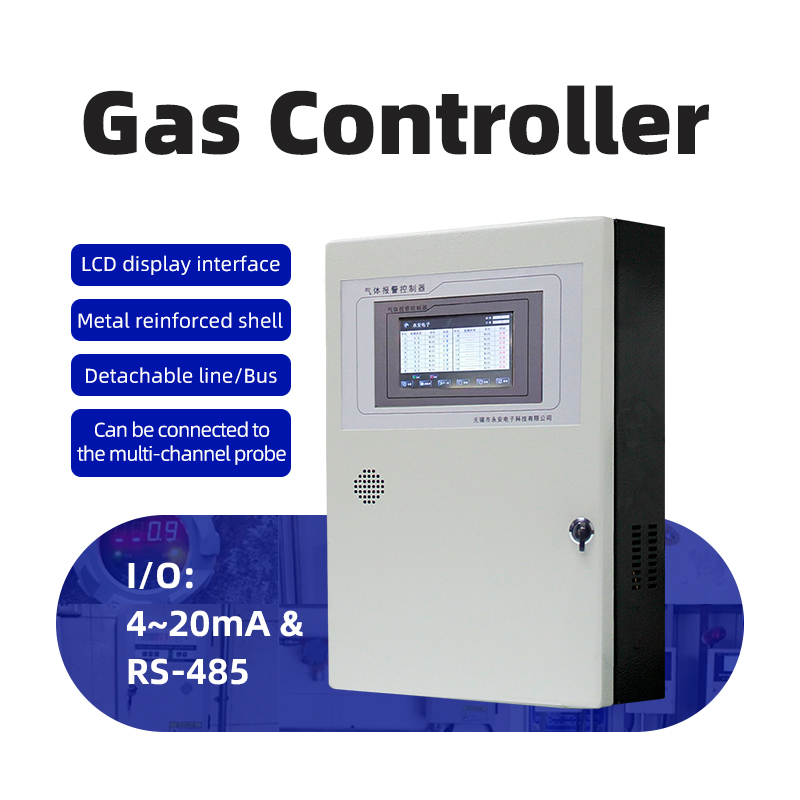

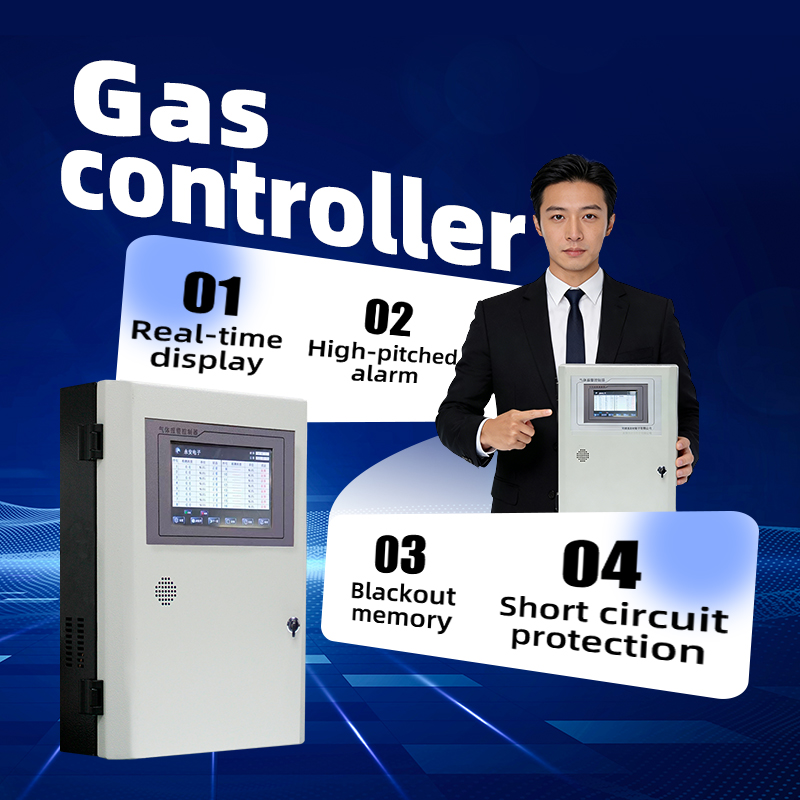

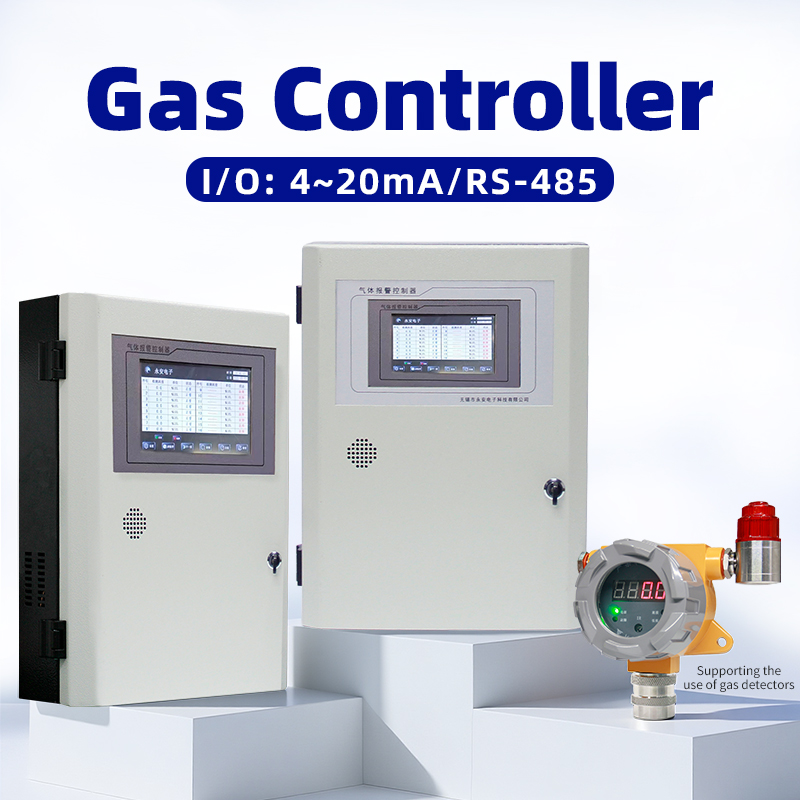

32-Channel Gas Alarm Controller is a premium, wall-mounted industrial monitor featuring a user-friendly LCD touchscreen. Supporting up to 32 split-system or bus-system channels, the advanced control panel integrates analog and digital inputs, delivers programmable relay outputs, and stores 6,000 alarm logs to ensure total facility safety.
Product Application:
1、Petrochemical Refineries: Centralized safety monitoring for large-scale toxic gas leaks.
2、Large Treatment Plants:Multi-channel tracking of flammable methane and H2S.
3、Industrial Manufacturing: Comprehensive workshop and warehouse hazard detection.
4、Tunnel & Mining Operations: Long-distance safety data transmission up to 2000 meters.
Product Specification Sheet:
Item | Parameter |
Product Name | 32-Channel Gas Alarm Controller |
Control Channels | Split system: 32 Channels / Bus system: 128 Channels |
Display Type | LCD Touchscreen |
Signal Transmission Distance | ≤ 2000 meters |
Signal Input | 4-20mA / RS485 |
Signal Output | RS485 (Digital signal output) |
Relay Outputs | 6 Programmable dry contacts + 2 General alarm dry contacts |
Power Supply | 220VAC / 50Hz |
Linkage Relays | 8 Groups of switch signals |
Power Consumption | ≤ 50W (Including detectors and accessories) |
Installation Method | Wall-mounted (With mounting bracket) |
Dimensions | 400mm × 300mm × 100mm |
Product Weight | 8kg |
Operating Temperature | 0°C ~ 50°C |
Operating Humidity | ≤ 93% RH |
Atmospheric Pressure Range | 86kPa ~ 106kPa |
Product advantages:
1、32 Channel Capacity: Supports split and bus systems for large-scale facility coverage.
2、Intuitive Touchscreen Interface: Premium LCD touchscreen provides effortless system navigation and real-time monitoring.
3、Programmable Relay Outputs: Features eight control relays for automated ventilation and emergency valve shutdown.
4、Extensive Log Storage: Records 6,000 alarm/fault logs for complete safety audit compliance.
Enterprise advantages
Company Introduction:
Wuxi Yong'an Electronic Technology Co., Ltd., established in 2011 and headquartered in Wuxi, China, is a high-tech enterprise integrating design, R&D, production, sales, and service. We have been deeply involved in the fields of safety monitoring equipment, industrial instruments, and industrial environment for 15 years. Adhering to the concept that "science and technology are the primary productive forces," we are committed to providing global customers with high-quality products and services, offering one-stop solutions. We serve over 200 international clients in 30 countries. We have a 1000-square-meter production base, a professional team of 100 people, and strictly implement the ISO9001 quality management system. From pre-sales consultation and sample confirmation to after-sales follow-up, we provide dedicated customer service to ensure worry-free procurement.
Certificate：
FQA：
1、What is the maximum channel capacity of this touchscreen gas controller?
The touchscreen gas controller supports up to 32 split-system channels and a massive 128 bus-system channels, making the monitoring panel ideal for large-scale industrial projects.
2、What type of interface does the multi-channel gas alarm panel use?
The multi-channel gas alarm panel is equipped with a premium LCD touchscreen interface, allowing operators to easily navigate menus, view real-time gas concentrations, and configure settings.
3、How many alarm relay outputs are available on the safety control panel?
The safety control panel provides 8 relay outputs in total, including 6 programmable dry contacts and 2 general alarm dry contacts, which can be linked to exhaust fans or shutdown valves.
4、What is the maximum signal transmission distance for the gas sensors?
The gas monitoring system supports an ultra-long signal transmission distance of up to 1,000 meters, ensuring reliable communication with remote gas sensors in large factories.
5、How many historical logs can the touchscreen monitor store?
The touchscreen monitor has a built-in memory that records up to 6,000 alarm and system fault logs, helping safety managers easily audit historical event data.
6、Does the industrial gas controller support both analog and digital sensor inputs?
Yes, the industrial gas controller features dual-signal input compatibility, accepting both standard 4-20mA analog signals and RS485 digital signals from various detectors.
7、Is the wall-mounted gas controller easy to install?
Yes, the wall-mounted gas controller features a split-type installation design and comes complete with a dedicated mounting bracket, making wall installation fast and straightforward.
