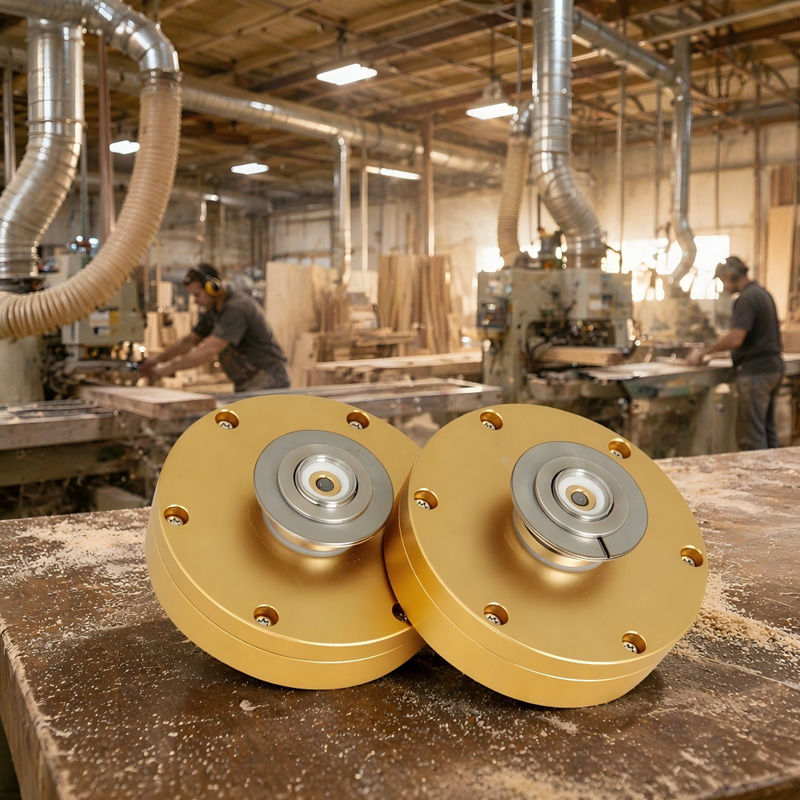

Extinguishing System Spark Detector with ATEX Certification for Dust Collection Safety
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10set (7-10 days); 20-100pcs (20-30 days)
Supply capacity Annual Production Volume 10,000+

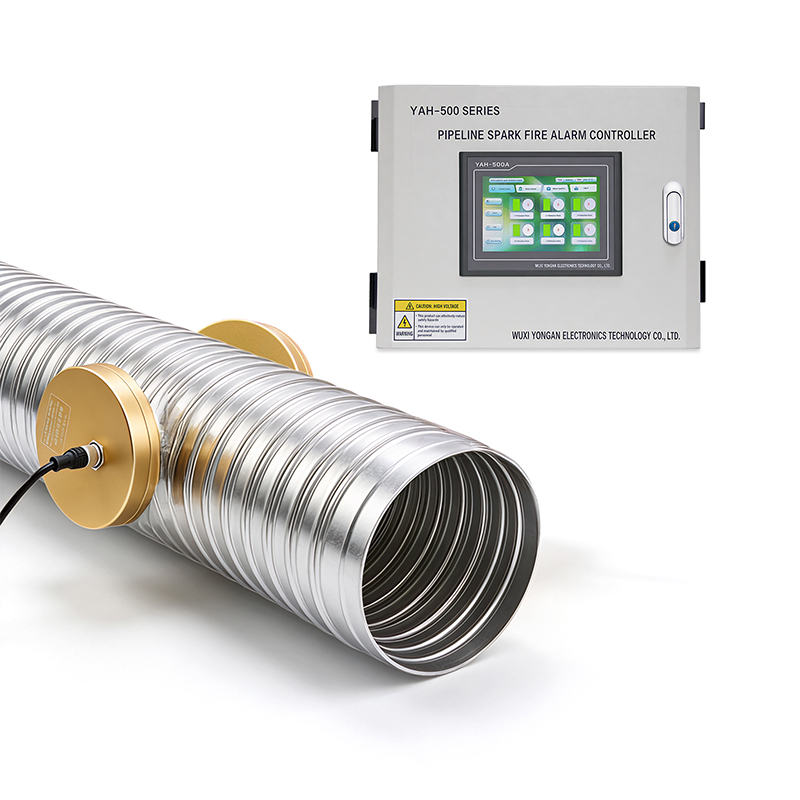

The IR Pipeline Spark Detection System is an advanced industrial safety solution utilizing high-sensitivity ultraviolet and infrared sensors to detect sparks in dust-collecting pipelines. This automatic extinguishing system triggers a high-speed water spray to extinguish sparks instantly, ensuring continuous plant safety and preventing hazardous dust explosions.
Product Application:
1、Woodworking & Furniture Plants: Prevents fires in central dust collection ducts.
2、Flour & Grain Milling: Detects hazardous sparks in dust-rich environments.
3、Metal & Chemical Processing: Safeguards closed transport and filtration pipelines.
Product Specification Sheet:
Item | Parameter |
Product Name | Pipeline Spark Detection and Extinguishing System |

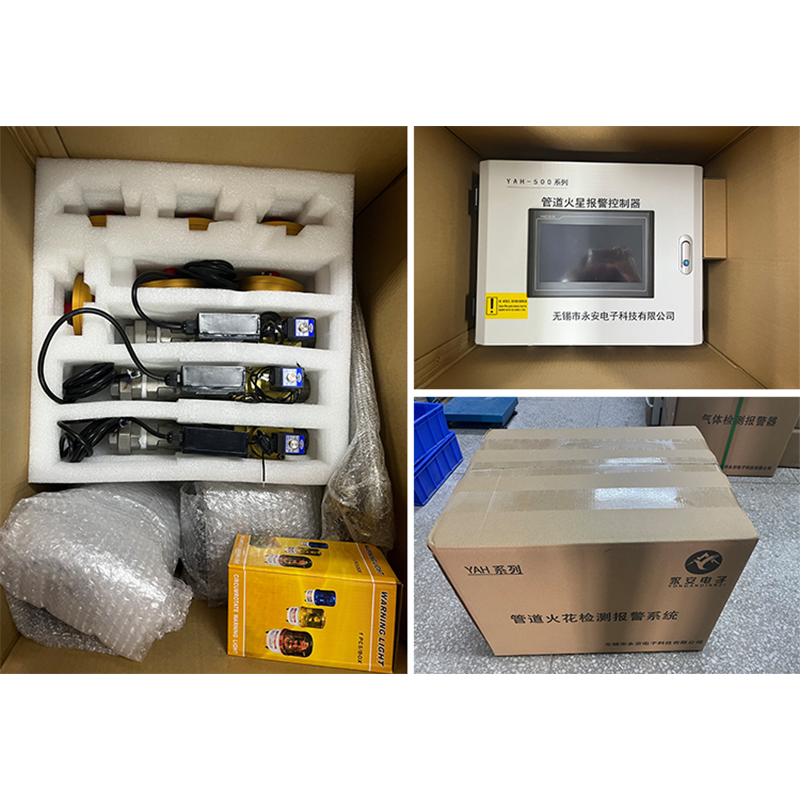

System Composition | Controller x 1, Detector x 1 set, Water Spray System x 1 , |
Operating Voltage | 220VAC / 50Hz |
Enclosure Materials | Premium cast aluminum, stainless steel, and heavy-duty sheet metal |
System Weight | 12kg |
Alarm Output | Sound & Light Alarm |
Operation Interface | High-resolution touchscreen |
Signal Relay Outputs | 2 Relays (Dry contact, Normally Open / Normally Closed) |
Detector Protection Class | IP65 (Epoxy resin potted) |
Explosion-Proof Marking | Ex tb IIIC T80°C Db (Dust explosion-proof) |
Operating Temperature | Detector: -40°C to 70°C / Controller: 0°C to 55°C |
Operating Humidity | 5% ~ 95% RH (Non-condensing) |
Atmospheric Pressure Range | 86kPa ~ 106kPa |
Product advantages:
1、IR Detection: infrared spectrums for ultra-fast, non-contact spark sensing.
2、Complete Automation: Integrates a touchscreen controller, IP67 detector, and high-speed water spray system.
3、Harsh Environment Ready: Dust-explosion proof rating and epoxy-potted detector ensure reliable outdoor operation.
4、Dual Relay Outputs: Provides dry contacts to shut down machinery instantly.
Product Parameter Chart:
Product model | YAH-500A |
Number of detection points | 2 |
Number of extinguish points | 2 |
Display Mode | LCD touch screen |
LCD screen size | 7 inch |
Working voltage | 220VAC+15% |
Linkage output point | Relay output |
Storing Data | 9999 |
Weight of whole machine | about 10KG |
Product model | YAH-201A | YAH-201 |
Operating temperature | -40℃~60℃ | -40℃~300℃ |
Reaction time | ≤10ms | |
Sensitive wavelength | 0.4~1.1um | |
Output signal | Pulse signal | |
Working voltage | 5-15VDC | |
Protection level | IP67 | |
Explosion-proof grade | Ex tb IlIC T80℃ Db | |
Accessories | Signal amplifier | |
Water spray volume | 1.5s/L |
Water spray duration | 3~5s |
Working voltage | 24VDC |
Working pressure | s1MPa |
Installation location | 6-9m behind the spark detector |
Booster pump(Optional) | Install when water pressure is less than 4KG |
Installation details:
Application scenario:
Enterprise Advantages
Company Introduction:
Wuxi Yong'an Electronic Technology Co.,Ltd with 15 years of experience in the industr, it has 4 modern production lines and isequipped with more than 10 professional intelligent production and testing instruments, including precision pressure testing machines,airtightness testers, highand low temperature aging test chambers, Bas precision calibrators,etc, covering the entire process of produc-tion, assembly, calibration, and quality inspection.
With excellent product quality and standardized management system, we have obtained multiple authoritative certifications, including ISO9001 certification, ISO14001 certification, and IS045001 certufication. A thesame time, we have muliple authoritative product qualifications such as CPA, CCEP, CE, SIL, ATEX, explosion-proof certificates. Ourproduct quality, safety, and stability meet the industry's high standard specifications.
Certificate:
FAQ：
1、How does the pipeline spark detection system detect sparks in dust pipelines?
spark alarm system utilizes high-sensitivity infrared (IR) photoelectric sensors to capture the specific thermal radiation emitted by flying sparks.
2、What extinguishing media does the system support? How to choose??
Our system supports multiple extinguishing media, which can be flexibly selected according to different industries and material characteristics: high-pressure fine water mist, nitrogen/carbon dioxide, inert gas. All extinguishing devices use specially designed high-pressure anti clogging nozzles, which have precise spray angles and atomization effects. While extinguishing sparks, they will not affect equipment such as pipelines, dust collectors, and filters.
3、Can the system be integrated with existing PLC or dust control systems?
Okay. Our control system has relay linkage output points that are compatible with existing PLCs, dust removal fan controllers, and other equipment to achieve subsequent linkage measures. Typical linkage functions include:
Automatic start spray/extinguishing system
Automatically close pipeline fire dampers or gates
Automatic shutdown of dust removal fan (cutting off oxygen and material sources)
Send alarm signals to the central control room.
4、Is the spark detector suitable for dusty outdoor environments?
Yes, the spark detector housing features epoxy resin potting with an IP67 waterproof and dustproof rating, protecting internal electronics from harsh outdoor climates.
5、What output signals does the spark control panel provide to other machinery?
The spark control panel features two relay dry contact outputs (normally open and normally closed) to shut down upstream fans or conveyor belts automatically during an emergency.
