Pipeline Spark Detection for the woodworking factory
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 5,000+
The UV/IR Pipeline Spark Detection System is an advanced industrial safety solution utilizing high-sensitivity ultraviolet and infrared sensors to detect sparks in dust-collecting pipelines. This automatic extinguishing system triggers a high-speed water spray to extinguish sparks instantly, ensuring continuous plant safety and preventing hazardous dust explosions.
Product Application:
1、Woodworking & Furniture Plants:
Prevents fires in central dust collection ducts.
2、Flour & Grain Milling:
Detects hazardous sparks in dust-rich environments.
3、Metal & Chemical Processing:
Safeguards closed transport and filtration pipelines.
Product Specification Sheet:
Item | Parameter |
Product Name | Pipeline Spark Detection and Extinguishing System |

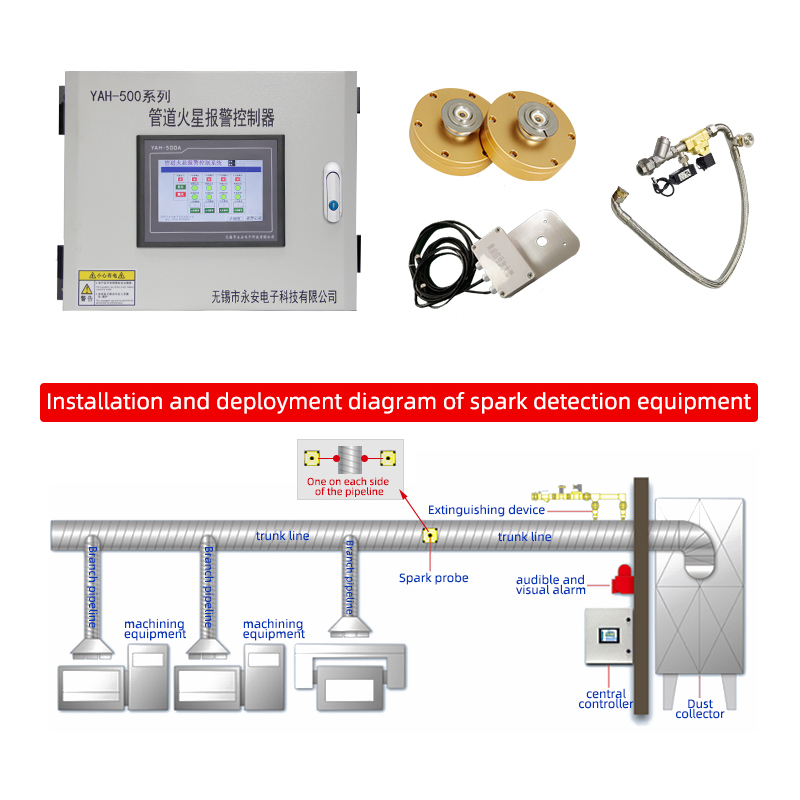

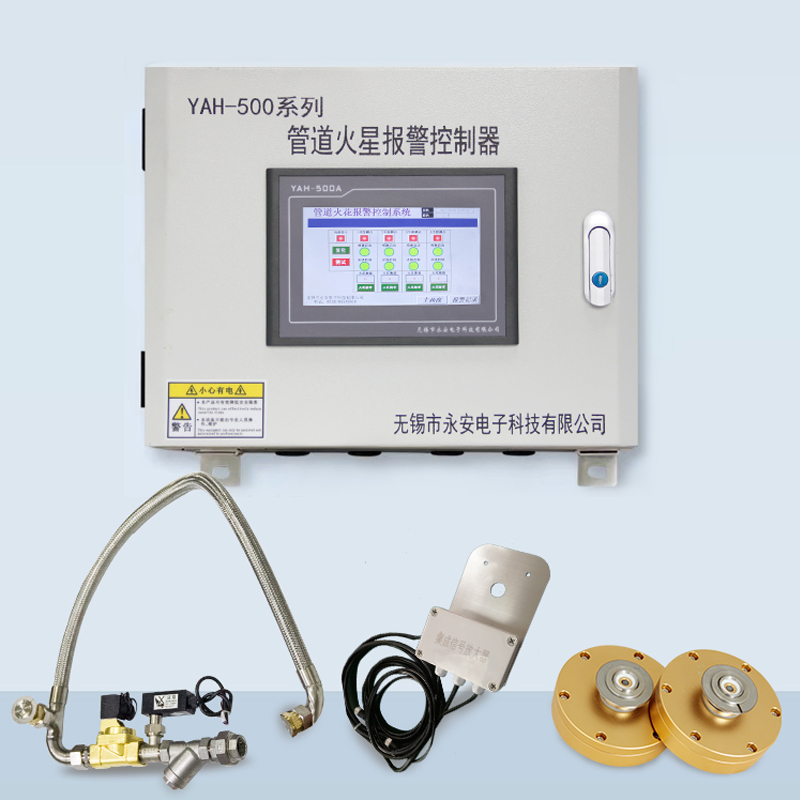

System Composition | Controller x 1, Detector x 1 set, Water Spray System x 1 , |
Operating Voltage | 220VAC / 50Hz |
Enclosure Materials | Premium cast aluminum, stainless steel, and heavy-duty sheet metal |
System Weight | 12kg |
Alarm Output | Sound & Light Alarm |
Operation Interface | High-resolution touchscreen |
Signal Relay Outputs | 2 Relays (Dry contact, Normally Open / Normally Closed) |
Detector Protection Class | IP65 (Epoxy resin potted) |
Explosion-Proof Marking | Ex tb IIIC T80°C Db (Dust explosion-proof) |
Operating Temperature | Detector: -40°C to 70°C / Controller: 0°C to 55°C |
Operating Humidity | 5% ~ 95% RH (Non-condensing) |
Atmospheric Pressure Range | 86kPa ~ 106kPa |
Product advantages:
1、Dual UV/IR Detection: Combines ultraviolet and infrared spectrums for ultra-fast, non-contact spark sensing.
2、Complete Automation: Integrates a touchscreen controller, IP67 detector, and high-speed water spray system.
3、Harsh Environment Ready: Dust-explosion proof rating and epoxy-potted detector ensure reliable outdoor operation.
4、Dual Relay Outputs: Provides dry contacts to shut down machinery instantly.
Enterprise advantages
Company Introduction:
Wuxi Yong'an Electronic Technology Co., Ltd., established in 2011 and headquartered in Wuxi, China, is a high-tech enterprise integrating design, R&D, production, sales, and service. We have been deeply involved in the fields of safety monitoring equipment, industrial instruments, and industrial environment for 15 years. Adhering to the concept that "science and technology are the primary productive forces," we are committed to providing global customers with high-quality products and services, offering one-stop solutions. We serve over 200 international clients in 30 countries. We have a 1000-square-meter production base, a professional team of 100 people, and strictly implement the ISO9001 quality management system. From pre-sales consultation and sample confirmation to after-sales follow-up, we provide dedicated customer service to ensure worry-free procurement.
Certificate：
FAQ：
1、How does the pipeline spark detection system detect sparks in dust pipelines?
The pipeline spark detection system utilizes high-sensitivity infrared (IR) photoelectric sensors to capture the specific thermal radiation emitted by flying sparks.
2、What components are included in the complete spark extinguishing kit?

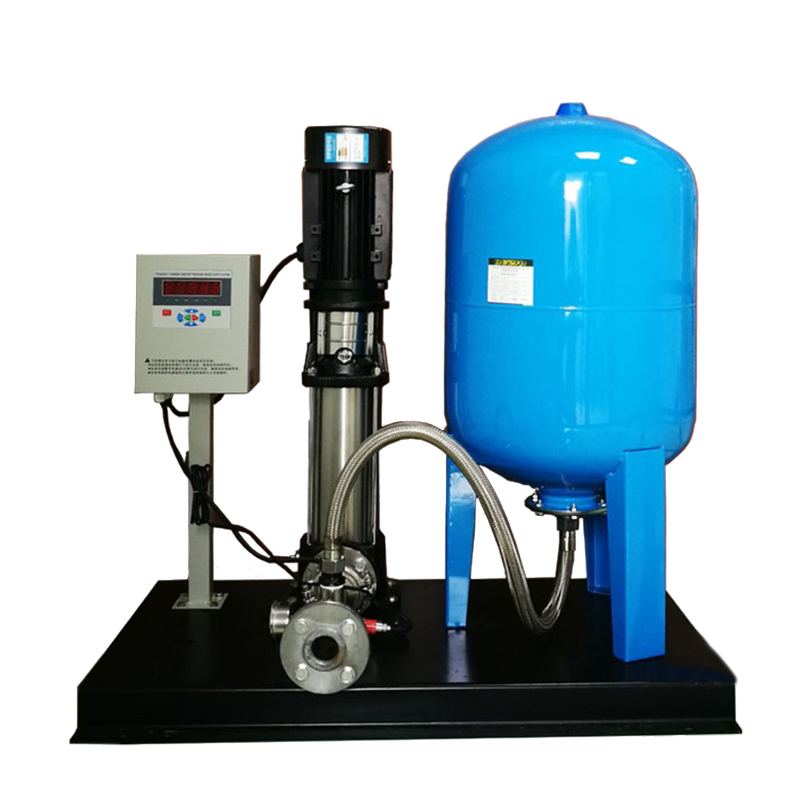

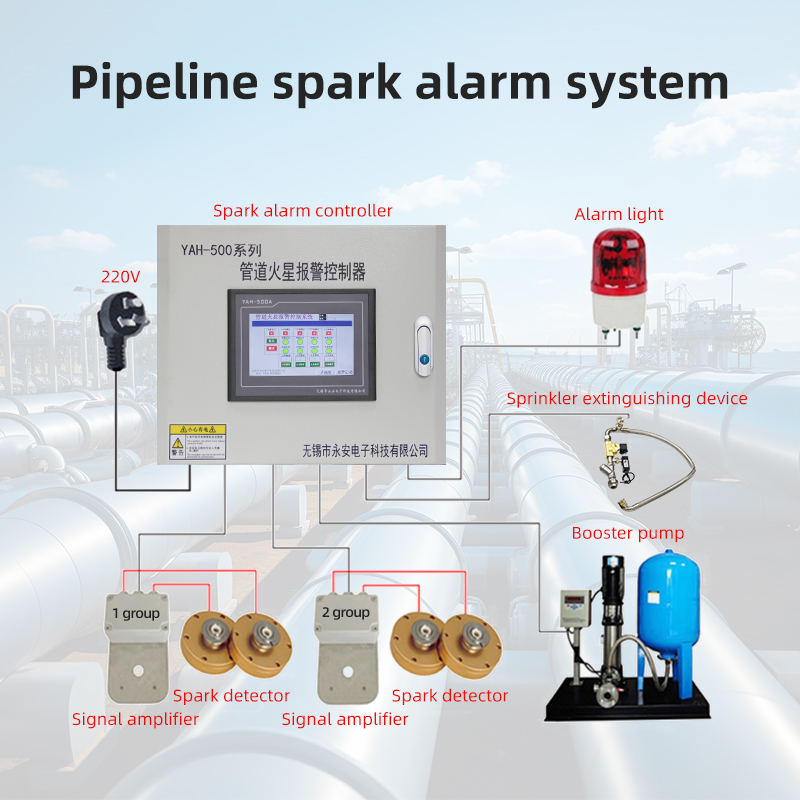

The complete spark extinguishing kit includes a central touchscreen controller, a spark detector set, an automated water spray system, and a constant pressure water supply unit.
3、What is the response speed of the automatic spark suppression process?
The automatic spark suppression process operates at millisecond speeds, detecting the spark and triggering the water spray instantly to extinguish ignition sources before a dust explosion occurs.
4、Is the spark detector suitable for dusty outdoor environments?
Yes, the spark detector housing features epoxy resin potting with an IP67 waterproof and dustproof rating, protecting internal electronics from harsh outdoor climates.
5、What output signals does the spark control panel provide to other machinery?
The spark control panel features two relay dry contact outputs (normally open and normally closed) to shut down upstream fans or conveyor belts automatically during an emergency.
6、Does the spark detection equipment carry explosion-proof safety ratings?
Yes, the spark detection equipment holds an Ex tb IIIC T80°C Db dust-explosion proof certification, guaranteeing safe installation in highly combustible dust zones.
7、What is the operational temperature range of the industrial spark detector?
The industrial spark detector is engineered to perform reliably in extreme temperatures, operating smoothly from -40°C to 70°C.
8、How does the operator manage settings and monitor the spark alarm system?
The operator can monitor the entire safety system and configure alarm parameters via the high-resolution touchscreen on the central controller unit.
