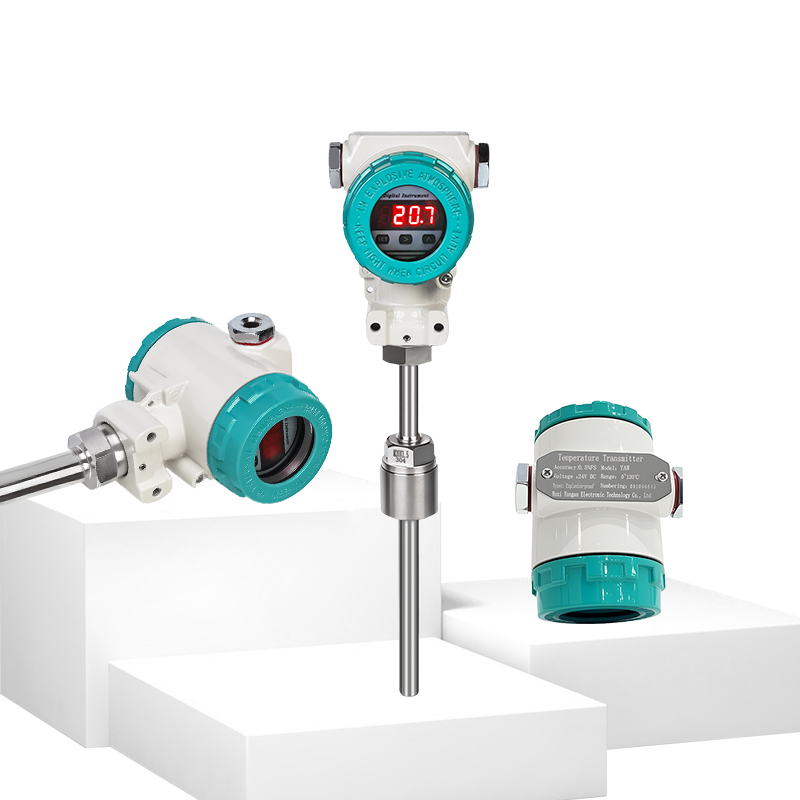

ATEX Certified Explosion-Proof PT100 Temperature Transmitter
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 10,000+
ATEX Explosion-Proof PT100 Temperature Transmitter is a high-precision industrial sensor featuring ±0.2% FS accuracy and a wide -200°C to 450°C measurement range. This ATEX-certified, IP65 waterproof device converts thermal signals into a stable 4-20mA output with optional HART protocol, ensuring reliable performance in hazardous outdoor environments.
Product Application:
1、Petrochemical Refineries:
Highly reliable temperature tracking in explosive gas zones.
2、2Power Generation:
Thermal monitoring for high-temperature boilers and steam pipelines.
3、HVAC Systems:
Accurate ambient and liquid temperature control in commercial buildings.
4、Pharmaceutical & Food:
Hygienic, corrosion-resistant stainless steel probe measurement.
Product Specification Sheet:
Item | Parameter |
Product Name | Explosion-Proof Temperature Transmitter |
Sensor Type | PT100 RTD Sensor |
Measuring Range | -200°C to 450°C |
Accuracy Class | ±0.2% FS |
Output Signal | 4-20mA (Optional with HART protocol) |
Power Supply | 24V DC |
Certifications | ATEX, CNEX, SIL, ISO9001 |
Explosion-Proof Marking | Ex db IIC T6 Gb / Ex tb IIIC T80°C Db |
Protection Class | IP65 |

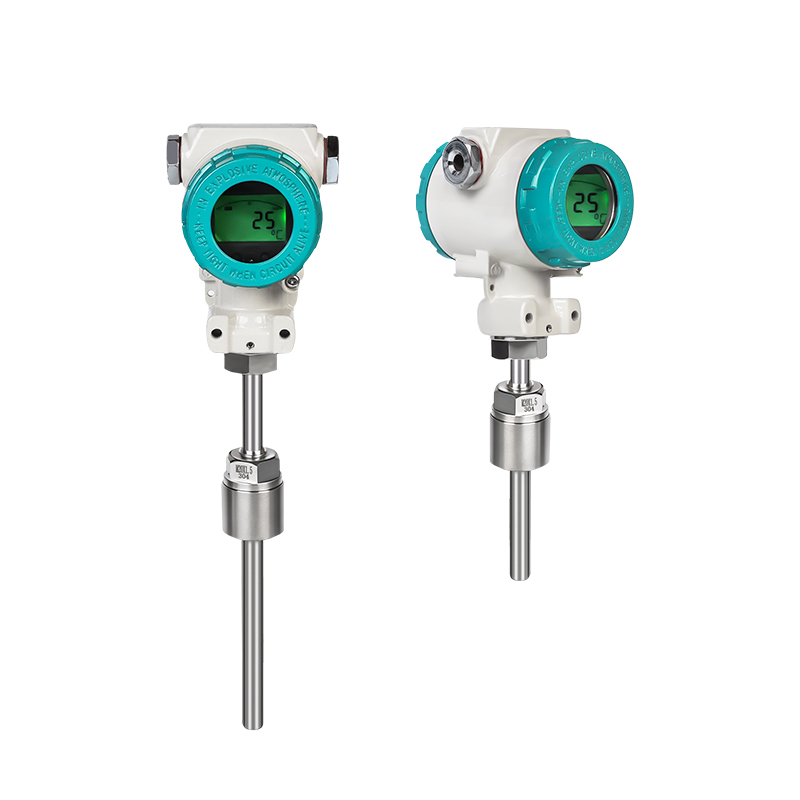

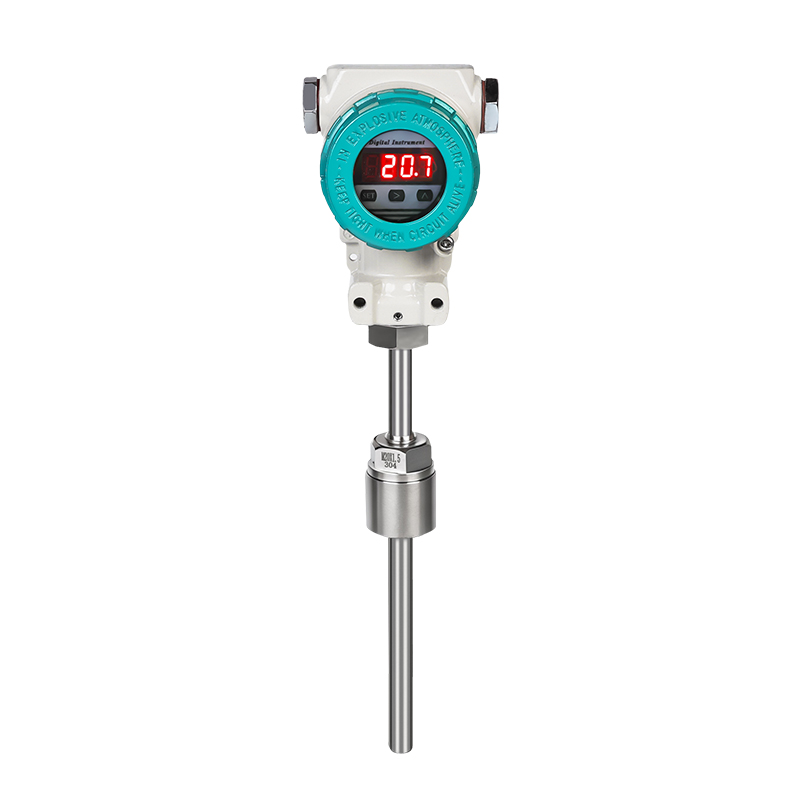

Display Type | LED Display / LCD Display (Optional) |
Housing Material | Heavy-duty cast aluminum |
Probe Material | 304 Stainless steel |
Probe Diameter | 6mm, 8mm, or 12mm (Customizable) |
Insertion Depth | 20mm to 1200mm (Customizable) |
Installation Method | Threaded or Flanged (Flange size customizable) |
Thread Specifications | M201.5, 1/2" NPT, 3/4" NPT1/2" BSP, M27*2 |
Product advantages:
1、High Accuracy Sensing:
Utilizes premium PT100 RTD sensors for stable, ±0.2% FS high-accuracy thermal measurement.
2、Certified Flameproof Design:
Fully ATEX, CNEX, and SIL certified, ideal for hazardous industrial areas.
3、Robust Weatherproof Housing:
Heavy-duty IP66 cast aluminum casing resists moisture, impact, dust, and corrosion.
4、Highly Flexible Customization:

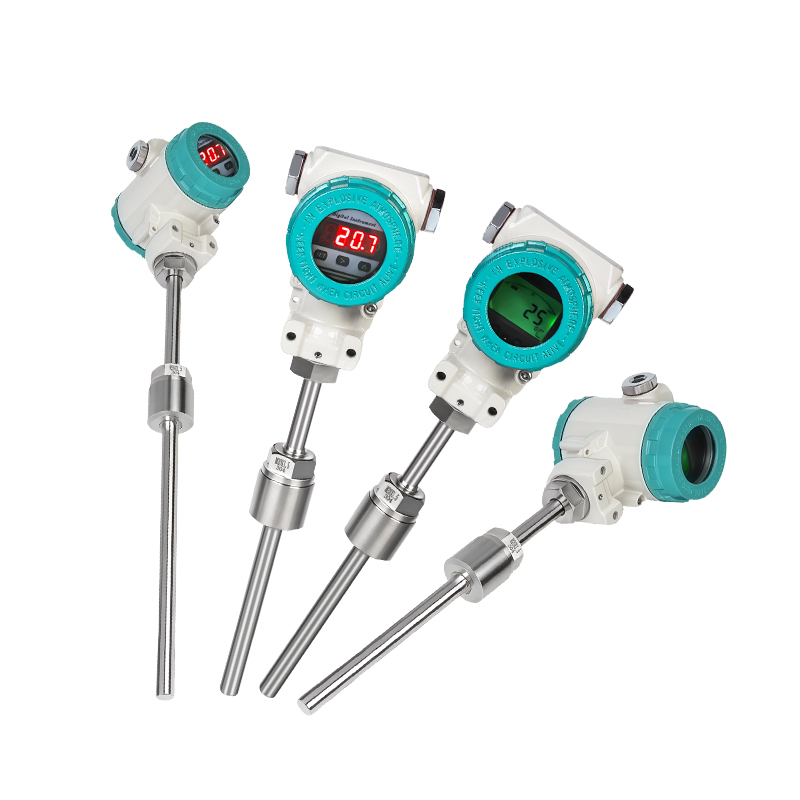

Offers customizable probe lengths, diameters, thread sizes, and digital display options.
Enterprise Advantages
Company Introduction:
Wuxi Yong'an Electronic Technology Co.,Ltd with 15 years of experience in the industr, it has 4 modern production lines and isequipped with more than 10 professional intelligent production and testing instruments, including precision pressure testing machines,airtightness testers, highand low temperature aging test chambers, Bas precision calibrators,etc, covering the entire process of produc-tion, assembly, calibration, and quality inspection.
With excellent product quality and standardized management system, we have obtained multiple authoritative certifications, including ISO9001 certification, ISO14001 certification, and IS045001 certufication. A thesame time, we have muliple authoritative product qualifications such as CPA, CCEP, CE, SIL, ATEX, explosion-proof certificates. Ourproduct quality, safety, and stability meet the industry's high standard specifications.
FAQ：
1、What is the standard measuring range of this explosion-proof temperature transmitter?
The explosion-proof temperature transmitter is highly versatile and supports a wide temperature measuring range from -200°C to 500°C.
2、Does this industrial temperature sensor carry ATEX certification for hazardous environments?
Yes, the industrial temperature sensor holds prestigious global certifications, including ATEX, CNEX, and SIL, guaranteeing safe flameproof operation.
3、Can the PT100 temperature transmitter output digital signals?
Yes, the PT100 temperature transmitter outputs a standard 4-20mA analog signal and offers an optional HART protocol or RS485 communication for smart digital integration.
4、What materials are used to construct the outer housing and the sensor probe?
The outer housing is made of explosion-proof cast aluminum, while the sensor probe rod is constructed from high-grade corrosion-resistant 304 stainless steel.
5、Is the probe length and diameter customizable to fit specific pipelines?
Yes, the temperature transmitter probe is fully customizable with probe diameters available in 6mm, 8mm, or 12mm, and insertion depths adjustable from 20mm to 1200mm.
6、What types of thread specifications are available for process installation?
The temperature transmitter sensor supports several standard thread specifications including M201.5, 1/2" NPT, 1/2" BSP, and M272, with flanged mounting options also available.
7、How does the transmitter protect against harsh outdoor weather conditions?
The heavy-duty cast aluminum enclosure is rated IP66 waterproof and dustproof, providing outstanding protection against moisture, dust, impact, and outdoor elements.
8、Are display screens available on the transmitter housing for onsite readings?
Yes, the temperature transmitter can be configured with a built-in LED display or an optional high-resolution LCD display for real-time onsite temperature monitoring.
