Hydrogen Gas Leak Detector H2 Gas Detector for UPS Battery Room
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 10,000+

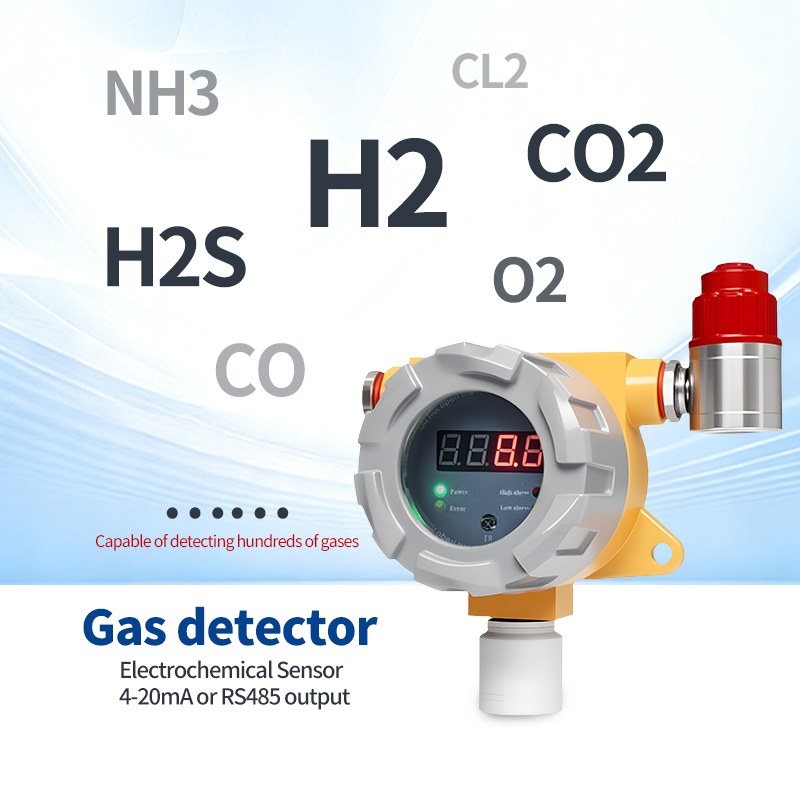

The Industrial Fixed Hydrogen Gas Detector is a high-precision monitoring terminal utilizing a specialized electrochemical sensor to provide real-time, accurate tracking of H2 levels. Engineered for hazardous industrial environments, this reliable monitor features a rugged IP66-rated explosion-proof housing and supports seamless integration via 4-20mA and relay outputs, ensuring effective hydrogen leak detection and continuous safety surveillance.

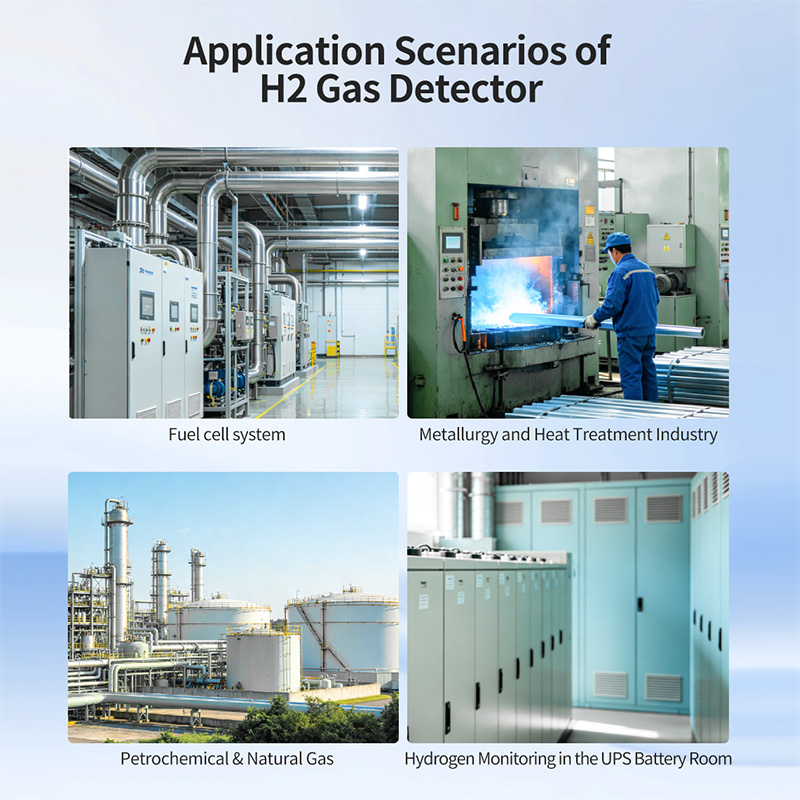

Product Application:
1、Battery Charging Rooms:
Lead-acid battery charging generates flammable hydrogen gas; our H2 leak detector monitors accumulation in real-time to automate ventilation and prevent explosive atmosphere buildup.
2、Hydrogen Refueling Stations:
High-pressure storage and dispensing zones require constant surveillance; the industrial hydrogen sensor triggers emergency shut-off valves through relay linkage the moment a leak is detected.
3、Power Plant Generators:
Hydrogen-cooled generators are prone to leakage; this electrochemical hydrogen monitor provides 24/7 detection to activate safety protocols and prevent catastrophic fire accidents in power facilities.
4、Chemical Manufacturing & Labs:
Precise chemical synthesis involving H2 demands strict gas control; the explosion-proof hydrogen detector sends real-time signals to centralized control panels to ensure operational safety.
Product Specification Sheet:
Item | Parameter |
Product Name | H2 Gas Detector |
Detection Range | 0-1000 PPM |
Measuring Principle | Electrochemical |
Signal Output | 4-20mA + 2 Relay |
Power Supply | 24VDC |
Power Consumption | 5W |
Alarm Type | Sound and Light Alarm |
Display | High-brightness LED Display |
Maintenance | Infrared Remote Control / Plug-and-play Sensor |
Installation Method | Wall-mounted / Ceiling / Pipe / Pole |
Main Material | Die-cast Aluminum |
Dimensions | 140mm × 155mm × 75mm |
Product Weight | 2kg |
Operating Temperature | -10°C ~ 55°C |
Explosion-proof Level | Ex db IIC T6 Gb |
Protection Level | IP66 |
Certificate | ATEX / CE / CNEX / ISO9001 |
Product advantages:
1、Advanced Electrochemical Sensing:
Equipped with a high-selectivity H2 sensor module providing rapid response and high accuracy for hydrogen detection without cross-interference.
2、Modular Plug-and-Play Design:
Features a hot-swappable sensor structure allowing for effortless on-site maintenance and replacement, significantly reducing operational downtime and labor costs.
3、Rugged IP66 Rated Enclosure:
The durable die-cast aluminum housing is built to survive corrosive atmospheres and extreme industrial weather, maintaining its explosion-proof integrity in hazardous zones.
4、Safe Infrared Configuration:
Supports contactless remote control operation, enabling personnel to adjust alarm thresholds and perform calibration without breaking the explosion-proof seal in dangerous areas.
5、Versatile Control Linkage:
Provides standard 4-20mA output and dual relays, facilitating easy connection to PLC/DCS systems for automated alarm management and external fan/valve control.
Enterprise advantages
Company Introduction:
Wuxi Yong'an Electronic Technology Co., Ltd., established in 2011 and headquartered in Wuxi, China, is a high-tech enterprise integrating design, R&D, production, sales, and service. We have been deeply involved in the fields of safety monitoring equipment, industrial instruments, and industrial environment for 15 years. Adhering to the concept that "science and technology are the primary productive forces," we are committed to providing global customers with high-quality products and services, offering one-stop solutions. We serve over 200 international clients in 30 countries. We have a 1000-square-meter production base, a professional team of 100 people, and strictly implement the ISO9001 quality management system. From pre-sales consultation and sample confirmation to after-sales follow-up, we provide dedicated customer service to ensure worry-free procurement.
Certificate：
FQA：
Q1: What is the standard measurement range for this hydrogen detector?
The electrochemical sensor is typically configured for a 0-1000 ppm range, providing precise measurement for hydrogen leak detection and industrial safety compliance.
Q2: Is the sensor module easy to maintain or replace?
Yes, our fixed H2 gas sensor utilizes a unique plug-and-play design, allowing operators to perform on-site sensor swaps quickly without disassembling the entire unit.
Q3: Can the detector withstand outdoor industrial environments?
With its IP66-rated die-cast aluminum housing, the hydrogen leak detector is fully protected against heavy dust and water jets, ensuring stable performance in humid or rainy sites.
Q4: Does the hydrogen monitor support automated equipment linkage?
Absolutely. This industrial-grade monitor features dual relay outputs, enabling the detection system to automatically trigger exhaust fans or shut-off valves when H2 levels exceed safety limits.
Q5: What safety certifications does the hydrogen detection device hold?
Our explosion-proof monitor is strictly certified under ATEX, CE, and CNEX standards, making the device suitable for the most hazardous global industrial environments.
Q6: Can I calibrate the gas meter without opening the explosion-proof cover?
Yes, the hydrogen gas detector supports infrared remote control, allowing for safe configuration and calibration in hazardous zones without opening the enclosure.
Q7: What is the power consumption of the industrial monitoring unit?
The H2 monitoring device is designed for efficiency with a power consumption of 5W, ensuring stable long-term operation within standard industrial power grids.
Q8: What installation methods are supported for site deployment?
To adapt to complex infrastructures, the gas detection terminal supports wall-mounted, ceiling-mounted, pipe-mounted, and pole-mounted installation options.
