Industrial carbon dioxide monitor ATEX Fixed CO2 gas Detector with display
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 10,000+
The Industrial Fixed CO2 Detector is a high-performance safety monitor designed for real-time tracking of carbon dioxide levels in hazardous environments. Utilizing advanced non-dispersive infrared (NDIR) technology and housed in an IP66-rated explosion-proof enclosure, this reliable gas detector ensures continuous safety monitoring and seamless integration with various air quality monitor systems.
Product Application:
1、Cold Chain & Brewery Workshops:
Monitors gas leakage risks during storage and fermentation processes to prevent industrial accidents.

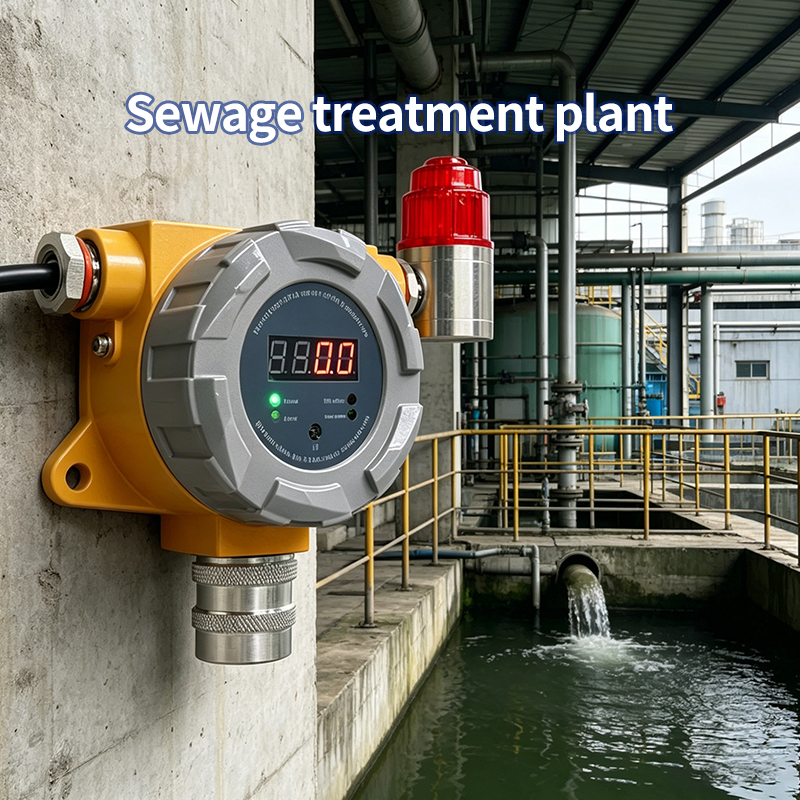

2、Chemical & Refining Plants:
Provides continuous safety monitoring in hazardous zones to detect toxic gas leaks and trigger emergency protocols.
Product Specification Sheet:
Item | Parameter |
Product Name | CO2 Gas Detector |
Detection Range | 0-5000PPM / 0-10000PPM / 0-5%vol |
Measuring Principle | Infrared (NDIR) |
Signal Output | 4-20mA + 2 Relay |
Power Supply | 24VDC |
Power Consumption | ≤3W |
Alarm Type | Sound and Light Alarm |
Display | High-brightness LED Display |
Sampling Method | Natural Diffusion |
Installation Method | Wall-mounted / Ceiling / Pipe / Pole |
Main Material | Die-cast Aluminum |
Installation Thread | M20 × 1.5 |
Dimensions | 140mm × 155mm × 75mm |
Product Weight | 2kg |
Operating Temperature | -20°C ~ 50°C |
Operating Humidity | <95% RH (No condensation) |
Explosion-proof Level | Ex db IIC T6 Gb |
Protection Level | IP66 |
Warranty | 12 Months |
Certificate | ATEX / CE / CNEX / ISO9001 |
Product advantages:
1、Advanced NDIR Technology:
Features a high-precision infrared sensor providing excellent selectivity, high accuracy, and a long service life with zero poisoning risk.
2、Explosion-Proof Reliability:
Certified with ATEX and CE standards, the robust die-cast aluminum housing ensures safe operation in explosion-prone environments.
3、IP66 Rated Durability:
The rugged enclosure provides superior waterproof and dustproof protection, making it ideal for the most demanding industrial sites.
4、Seamless System Integration:

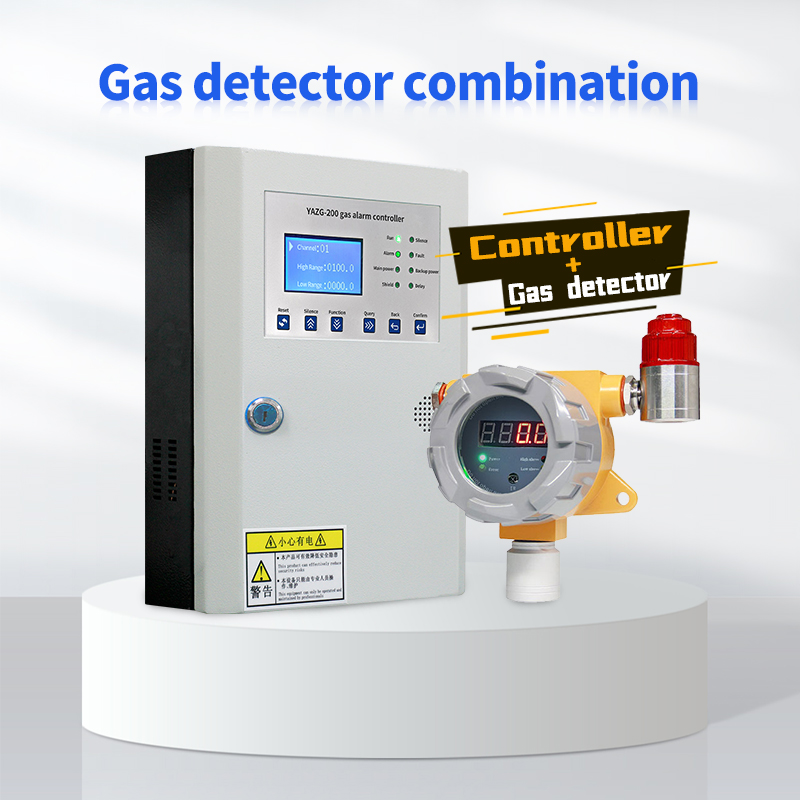

Supports standard 4-20mA and 2 Relay outputs, allowing for easy connection to DCS, PLC systems, and external linkage equipment.
5、Integrated Visual & Audible Alerts:
Equipped with a bright LED display and a built-in sound-light alarm, providing immediate on-site warning during gas leak events.
Enterprise advantages
Company Introduction:
Wuxi Yong'an Electronic Technology Co., Ltd., established in 2011 and headquartered in Wuxi, China, is a high-tech enterprise integrating design, R&D, production, sales, and service. We have been deeply involved in the fields of safety monitoring equipment, industrial instruments, and industrial environment for 15 years. Adhering to the concept that "science and technology are the primary productive forces," we are committed to providing global customers with high-quality products and services, offering one-stop solutions. We serve over 200 international clients in 30 countries. We have a 1000-square-meter production base, a professional team of 100 people, and strictly implement the ISO9001 quality management system. From pre-sales consultation and sample confirmation to after-sales follow-up, we provide dedicated customer service to ensure worry-free procurement.
Certificate：
FQA：
Q1: What is the measuring range of this carbon dioxide monitor?
To meet diverse industrial requirements, the infrared sensor offers multiple range options including 0-5000PPM, 0-10000PPM, or 0-5%vol for precise detection.
Q2: Does the fixed gas detector carry international safety certifications?
Yes, this industrial-grade monitoring equipment has obtained ATEX, CE, CNEX, and ISO9001 certifications, ensuring full compliance for global market distribution.
Q3: What types of signal outputs does the infrared gas transmitter support?
This high-precision monitor supports standard three-wire 4-20mA analog signal output and is equipped with 2 relay ports for linking external exhaust fans or valves.
Q4: How durable is the housing of the industrial CO2 detector?
The gas leakage tester features a die-cast aluminum enclosure with an IP66 protection rating, providing excellent waterproof and dustproof performance for harsh outdoor environments.
Q5: What technology does the air quality monitor system use for detection?
The gas analyzer terminal utilizes Non-Dispersive Infrared (NDIR) technology, which offers higher accuracy, zero risk of poisoning, and a longer lifespan compared to electrochemical sensors.
Q6: Does the gas sensor detector include a local alarm function?
Yes, the CO2 warning device integrates a high-brightness LED display and a built-in high-decibel sound-light alarm to alert personnel immediately when concentrations exceed safety limits.
Q7: What are the installation options for the wall-mounted CO2 monitor?
To adapt to complex industrial sites, the gas detection transmitter supports wall-mounted, ceiling-mounted, pipe-mounted, and pole-mounted installation methods with simple wiring.
Q8: What are the environmental requirements for the industrial monitor to operate?
This professional-grade detector is designed to operate reliably within a temperature range of -20°C to 50°C and humidity levels below 95%RH without condensation.
