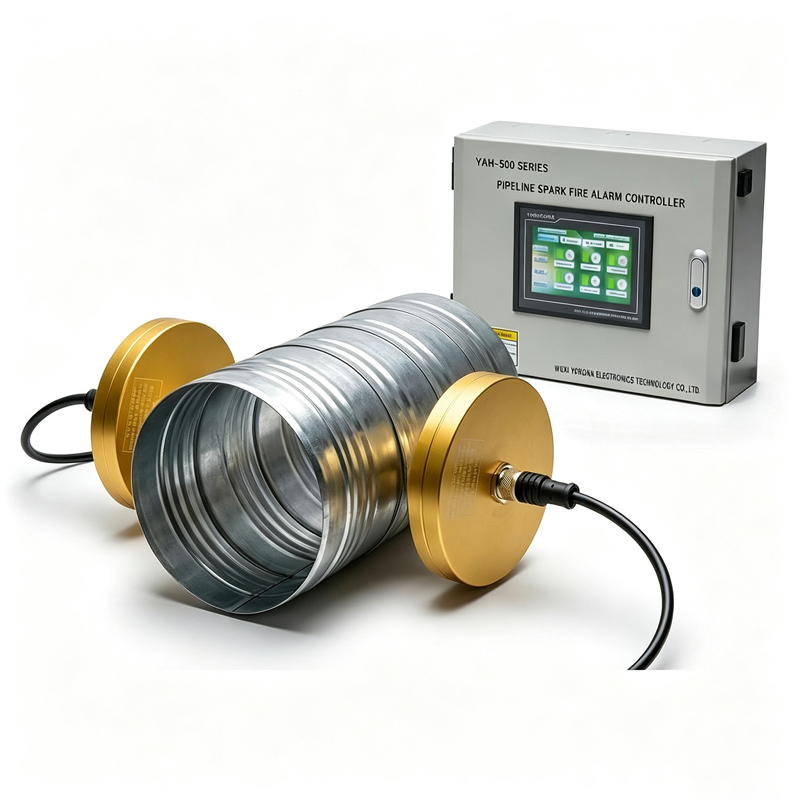

pipeline spark alarm controller

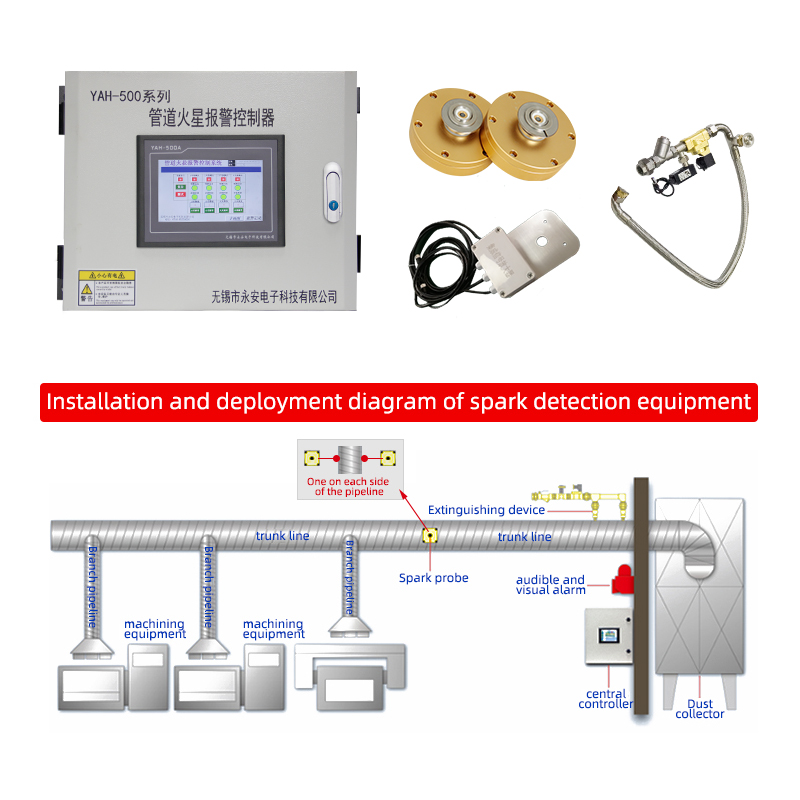

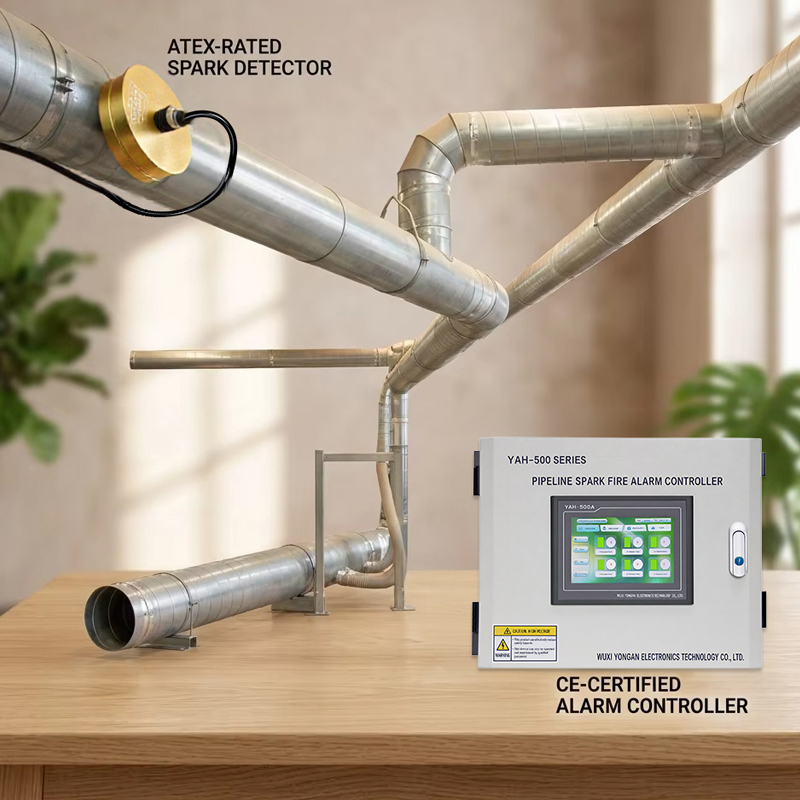

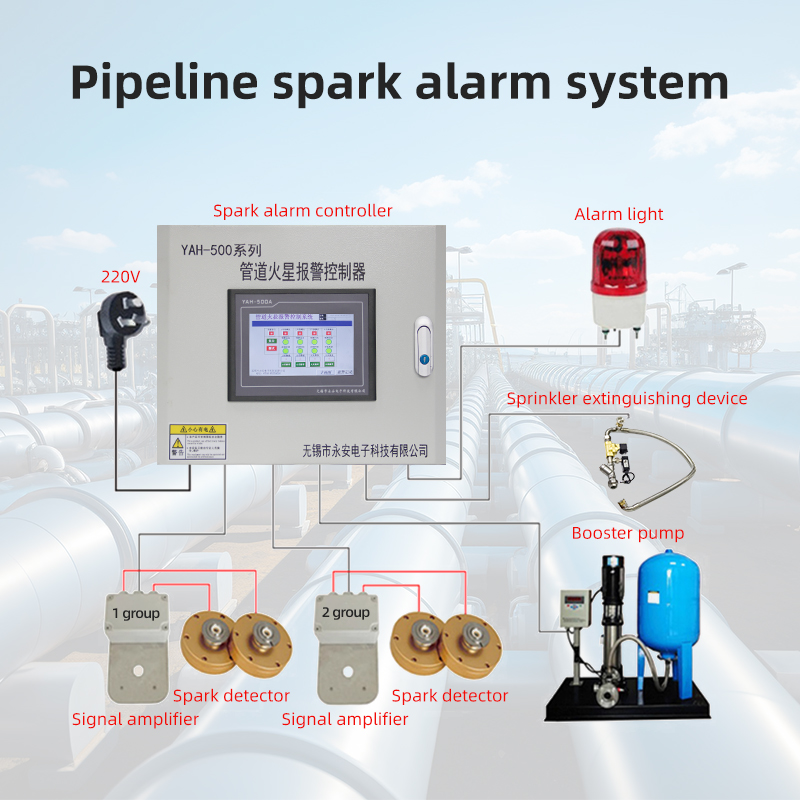

The spark detector is used to detect sparks or sparks mixed in the dust conveying pipeline. It uses infrared high-sensitivity detectors to detect sparks, alarms in time, and starts the downstream spray device to extinguish the sparks in time to protect the equipment and prevent fire or dry explosion. Purpose, the whole process is completed in less than 0.3 seconds. Installation is simple and convenient. The spark detector is divided into YAH-201A basic type and YAH-201B independent type according to the site usage.
Product name: pipeline spark alarm controller
Number of detection points: Type A: 2 groups, Type B: 4 groups, Type C: 6 groups
Linkage output points: 6 groups of relays, passive, normally open or normally closed
Off time: set the time through the touch screen of the man-machine interface.
Module self-test: manual + automatic
Display mode: LCD touch screen
Message record: 9999
Power supply: 220VACV
TAG: Pipeline spark alarm control system, pipeline fire extinguishing device, dust removal equipment spark detection, dust collector fire extinguishing
