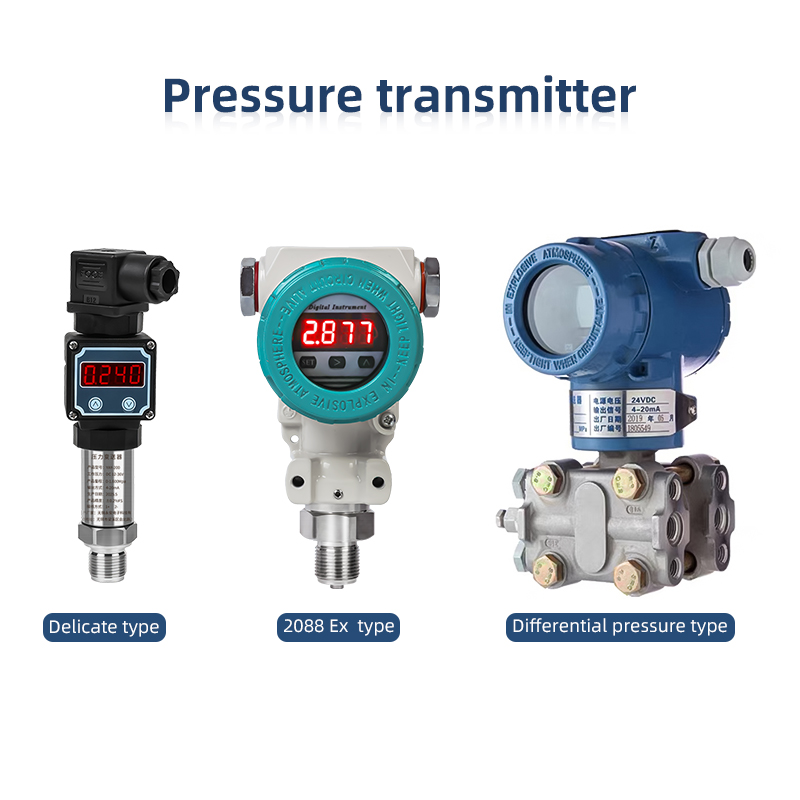

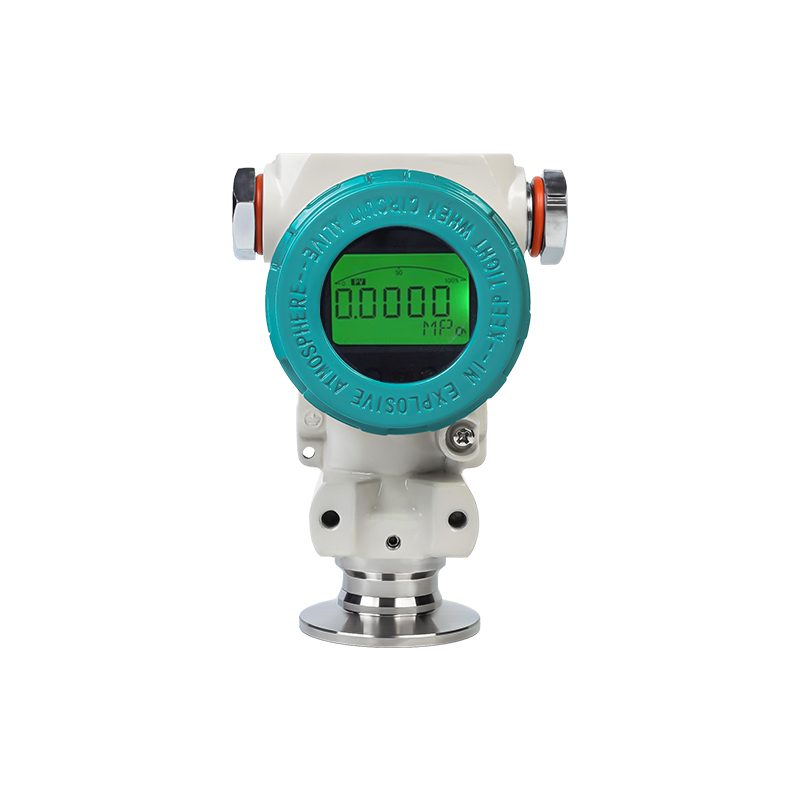

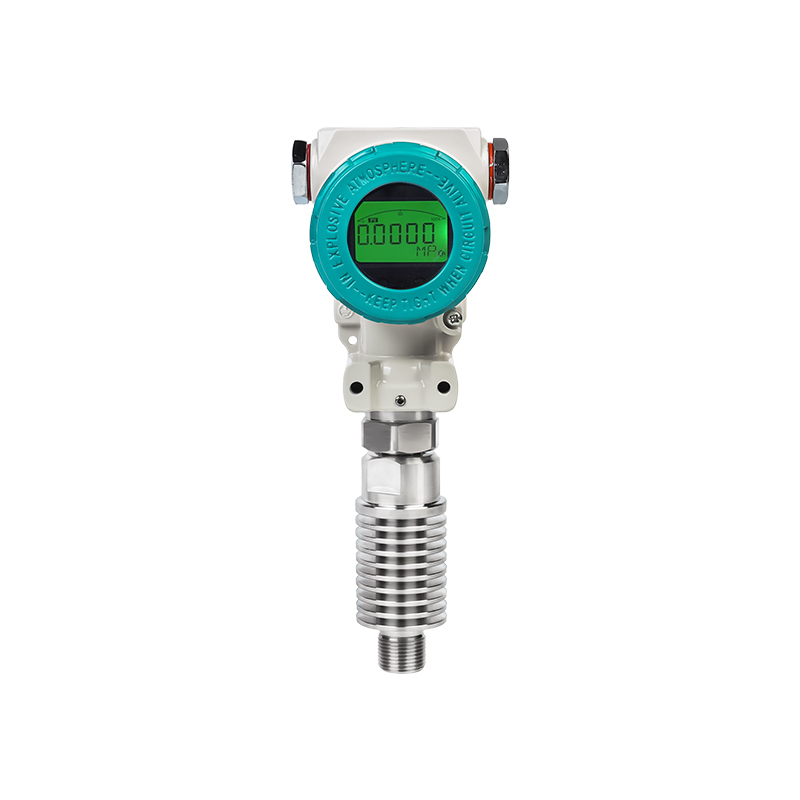

4-20mA HART Stainless Steel Explosion Proof Pressure Transmitter for Water Oil Gas Industrial
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 10,000+
Product Highlights：
1. Features a low-pressure cast aluminum alloy housing that is explosion-proof and durable, along with tempered glass for comprehensive protection.
2. Equipped with a 3mm pressure inlet port to minimize instantaneous impact on the diaphragm, ensuring reliable and flexible operation while safeguarding sensitivity.
3. stainless steel pressure transmitter supports 4-20 mA two-wire output with HART protocol support available as an option on select models.
4. high accuracy pressure transmitter explosion-proof rating is ExdIICT6Gb, and the ingress protection rating reaches IP65.
5. industrial pressure sensor housing is constructed from explosion-proof cast aluminum, offering resistance to moisture, water, dust, and impact, making it suitable for long-term use in outdoor and harsh environments.
Product details:

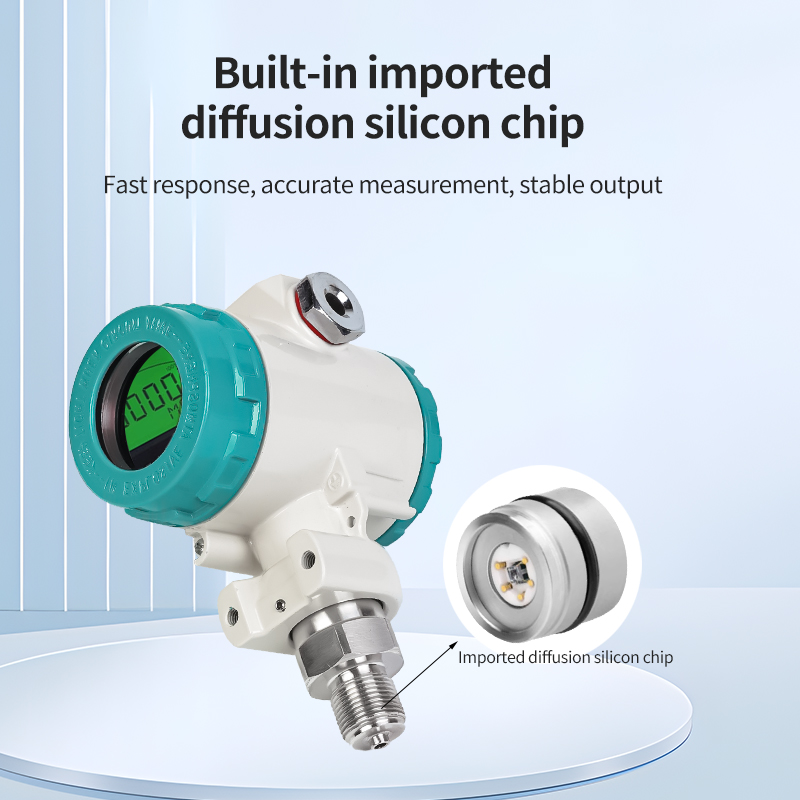

This series of Smart pressure transmitters utilizes high-performance diffused silicon or ceramic piezoresistive sensors, combined with advanced digital compensation technology, to convert pressure signals into standard 4–20 mA or HART protocol outputs. These products are widely applied in industrial automation and process control fields, including the petroleum, chemical, water treatment, hydraulic systems, HVAC, food, and pharmaceutical industries.
Product Specification Sheet:
Model Number | YAY series |
Prodect Name | Pressure Transmitters |
Pressure Range | -100kPa~+100KPa, 0~60MPa (Customizable) |
Measured Medium | Gas or Liquid |
Power Supply | 24VDC ±10% |
Language Support | English |
Qutput Signal | 4-20mA/RS485/ HART |
Display | LCD display |
Ambient Temperature | 0–80°C |
Relative Humidity | <90% RH (non-condensing) |
Connection Method | Threaded or Flanged |
Thread Specifications | M20×1.5, NPT1/2, G1/2 (Customizable) |
Explosion-proof Marking | Ex d IIC T6 Gb |
Protection Class | IP65 |
Housing Material | Cast Aluminum |
Thread Material | 304 (316, PTFE, etc., available upon request) |
Accuracy Class | ±0.5%FS,±0.2%FS |
Pressure Type | Gauge Pressure,Absolute Pressure,Sealed Pressure |
Product advantages:
1.Comprehensive Certifications: CNEX, ATEX, SIL, ISO 9001, ISO14001, and ISO45001 ,ensuring full compliance and qualification.
2. Professional Technical Support:Our technical engineers work directly with clients to assist any product-related concerns clients may have both before and after placing an order.
3. Rapid After-Sales Response: In the event of a quality issue, our technical engineers will immediately diagnose the root cause of the fault and promptly arrange for a replacement shipment or provide a corrective solution.
4. Brand Customization: We offer LCD Digital Pressure Transmitter customization services, including the integration of your company logo and name.
Enterprise Advantages
Company Introduction:

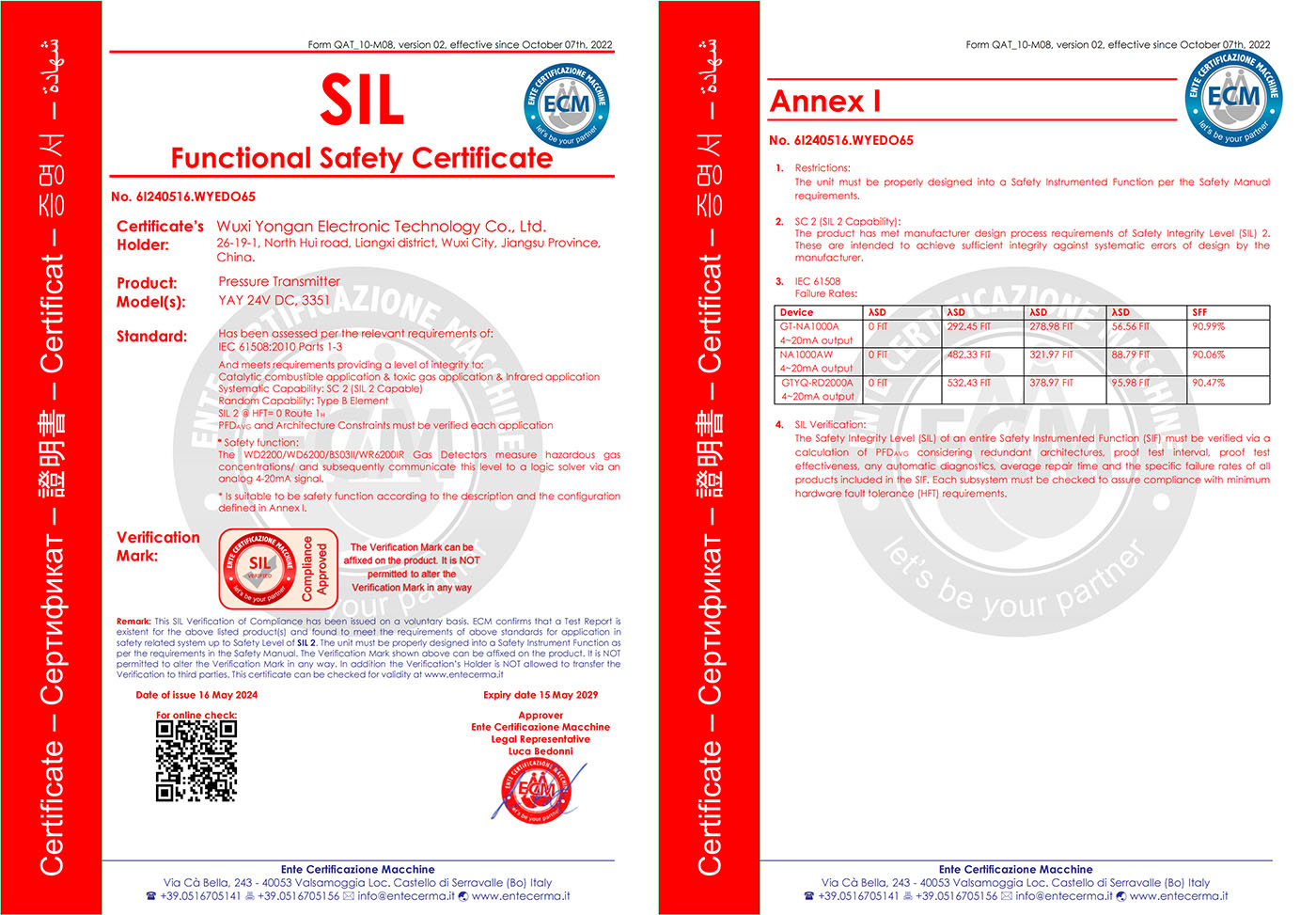

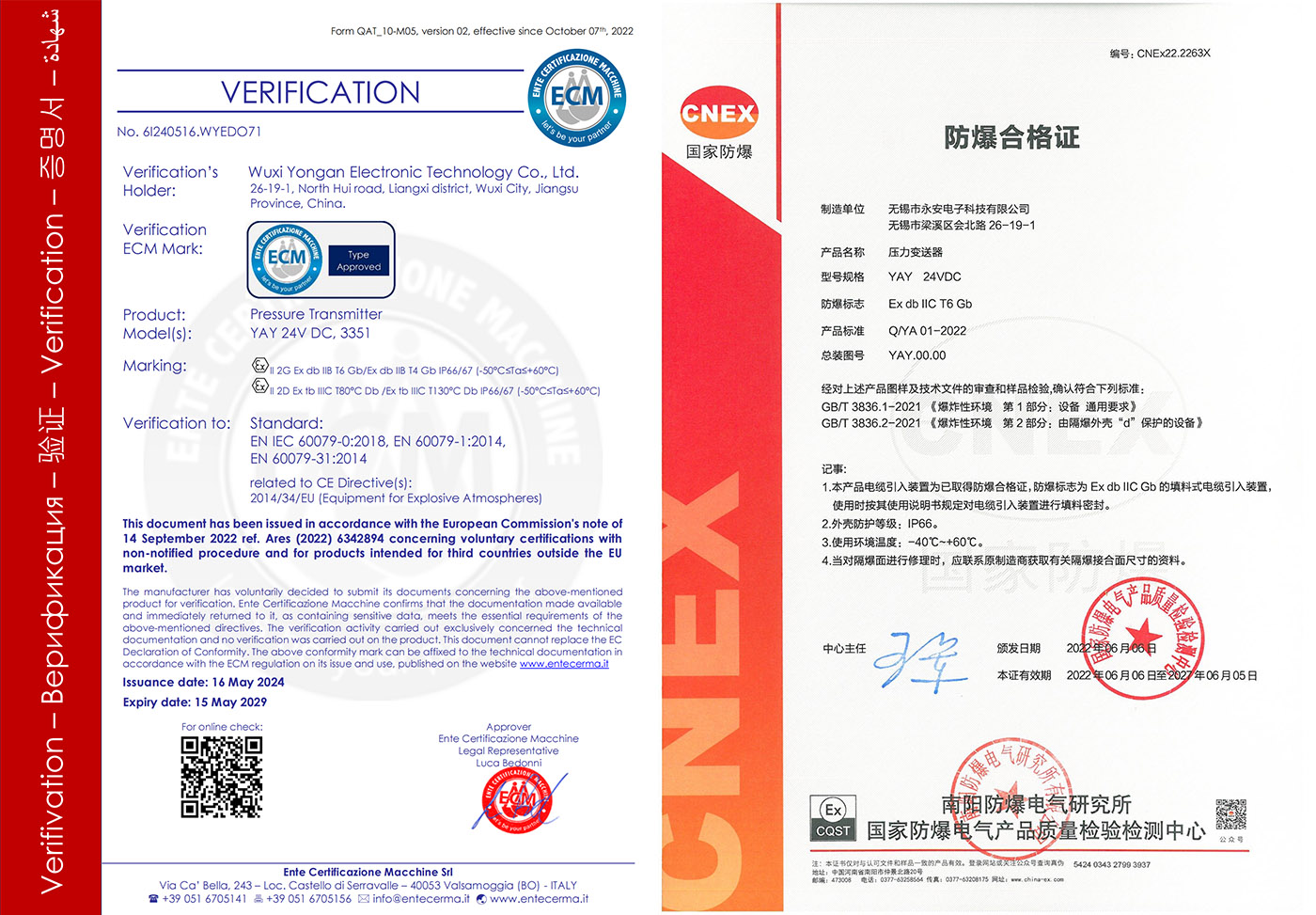

Certificate:
FAQ;
Q1: In which industries can pressure transmitters be applied?
A: Pressure transmitters are widely used in industries such as oil and gas (pipeline pressure monitoring), chemicals (reactor pressure), water treatment (water supply network pressure monitoring), HVAC (air conditioning systems), hydraulic and pneumatic systems, food and beverage, pharmaceuticals, and compressors.
Q2: What is the Minimum Order Quantity (MOQ) for OEM/custom orders?
A: As a manufacturer, we offer flexible ordering options. The MOQ for standard products is typically 10–50 units, while for OEM custom orders, it depends on the specific requirements of the client. We welcome you to submit an RFQ, and we will provide a quotation based on your specific specifications.
Q3: How long is the warranty period? How are after-sales issues handled?
A: We offer 2088 pressure transmitter 12-month warranty period. Products sustaining non-human-induced damage during the warranty period are eligible for free repair or replacement.
