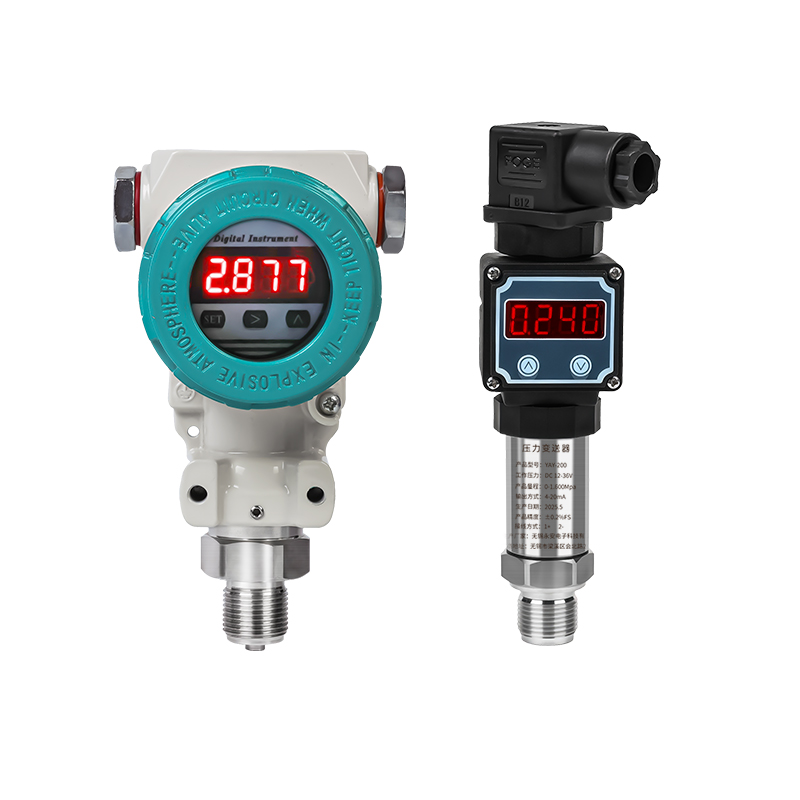

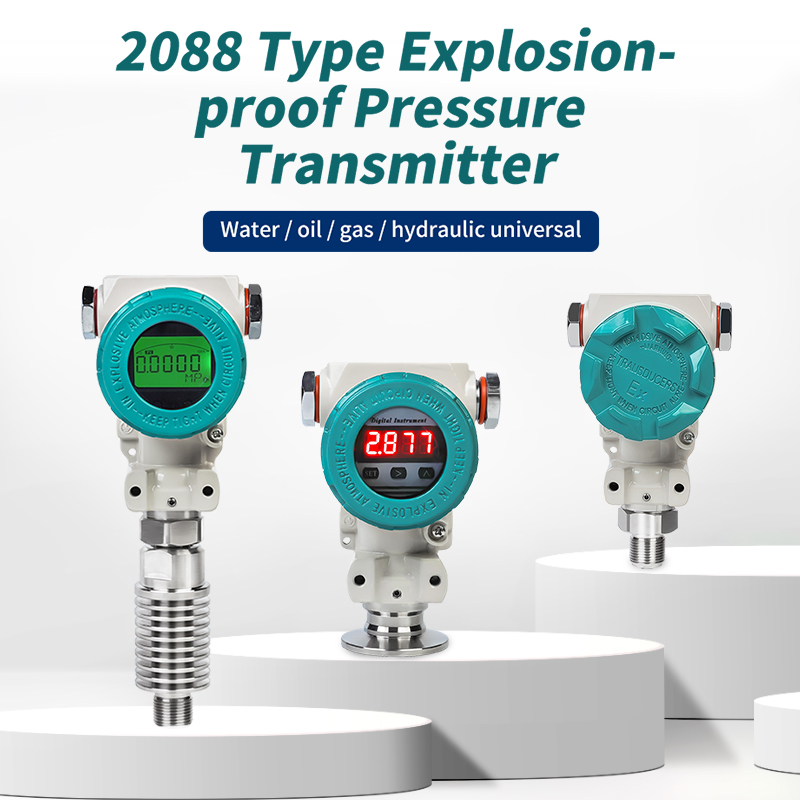

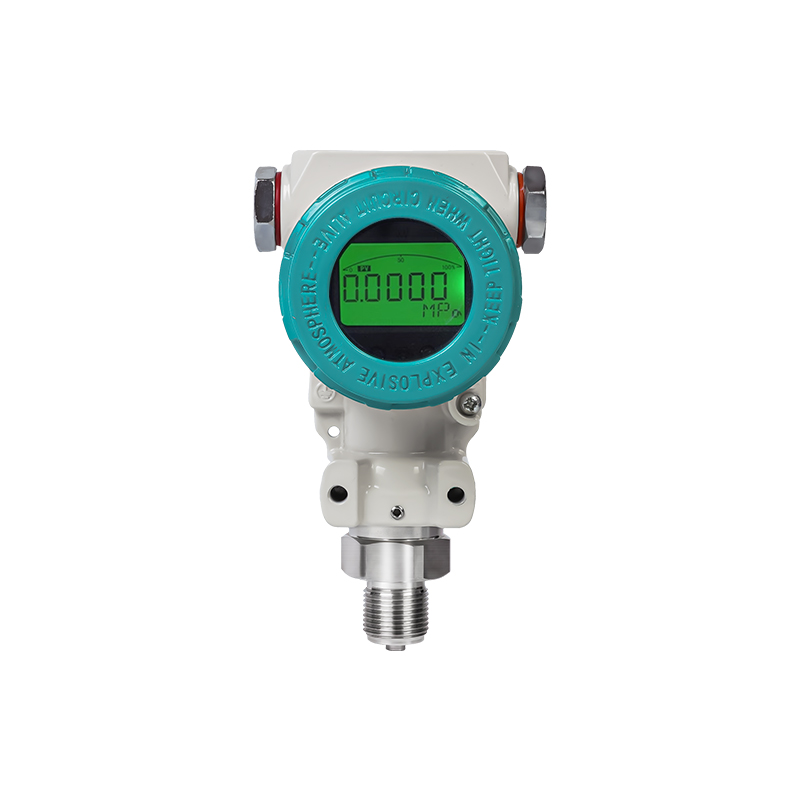

OEM Custom 4-20mA Pressure sensor Transmitter Digital Smart Pressure Transmitter
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 10,000+

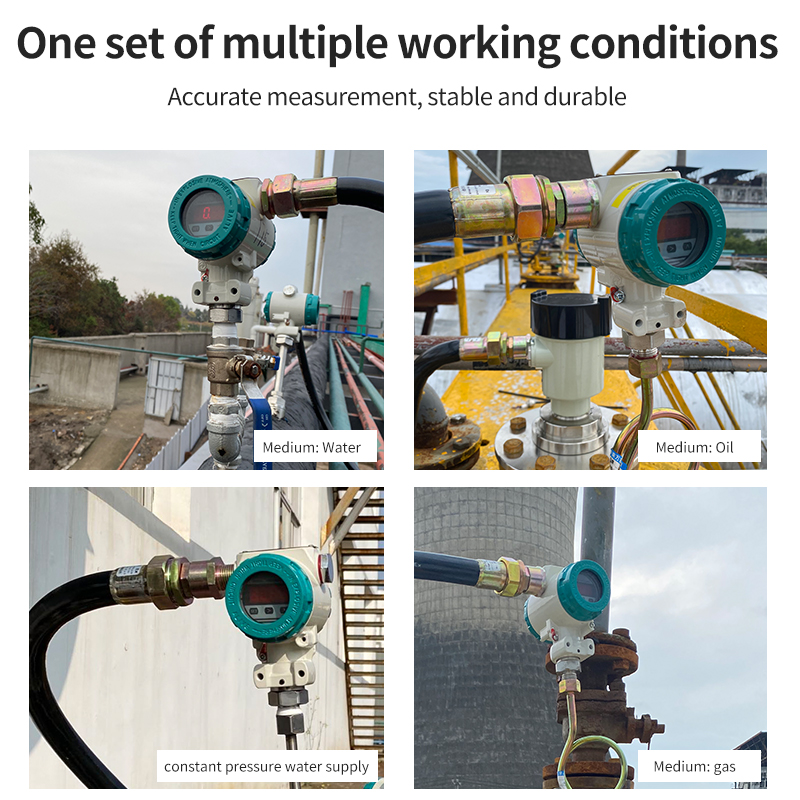

1.Oil and Gas Industry:4-20mA Pressure Transmitters for Wellheads, Pipelines, and Refinery Reactors
2.Water Treatment and Environmental Protection Industry: industrial pressure sensor for Installation of Pipe Networks, Pumping Stations, and Filters

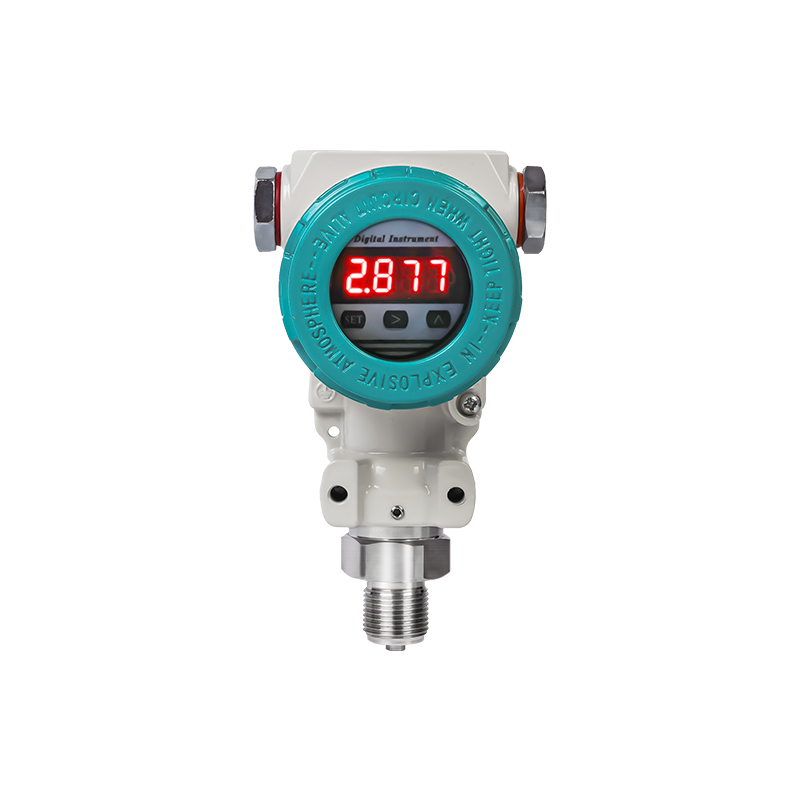

3. Chemical and Pharmaceutical Industries: ATEX Explosion Proof Pressure Transmitter for Reactors, Clean Piping
4.Power and Energy Industries: pressure transducer for Boilers, Steam Turbines
5.Food and Beverage Industry: Level Pressure Transmitter for Pipelines, Fermentation Tanks
Product details:
This series of pressure transmitter utilizes high-performance diffused silicon or ceramic piezoresistive sensors, combined with advanced digital compensation technology, to convert pressure signals into standard 4–20 mA or HART protocol outputs. These products are widely applied in industrial automation and process control fields, including the petroleum, chemical, water treatment, hydraulic systems, HVAC, food, and pharmaceutical industries.
Product Specification Sheet:
Model Number | YAY series |
Prodect Name | Pressure Transmitters |
Pressure Range | -100kPa~+100KPa, 0~60MPa (Customizable) |
Measured Medium | Gas or Liquid |
Power Supply | 24VDC ±10% |
Language Support | English |
Qutput Signal | 4-20mA/RS485/ HART |
Display | LED display |
Ambient Temperature | 0–80°C |
Relative Humidity | <90% RH (non-condensing) |
Connection Method | Threaded or Flanged |
Thread Specifications | M20×1.5, NPT1/2, G1/2 (Customizable) |
Explosion-proof Marking | Ex d IIC T6 Gb |
Protection Class | IP65 |
Housing Material | Cast Aluminum |
Thread Material | 304 (316, PTFE, etc., available upon request) |
Accuracy Class | ±0.5%FS,±0.2%FS |
Pressure Type | Gauge Pressure,Absolute Pressure,Sealed Pressure |
Product advantages:
1.Comprehensive Certifications: CNEX, ATEX, SIL, ISO 9001, ISO14001, and ISO45001 ,ensuring full compliance and qualification.
2. Professional Technical Support:Our technical engineers work directly with clients to assist any product-related concerns clients may have both before and after placing an order.
3. Rapid After-Sales Response: In the event of a quality issue, our technical engineers will immediately diagnose the root cause of the fault and promptly arrange for a replacement shipment or provide a corrective solution.
4. Brand Customization: We offer customization services, including the integration of your company logo and name.
Enterprise Advantages
Company Introduction:
Wuxi Yong'an Electronic Technology Co., Ltd., established in 2011 and headquartered in Wuxi, China, is a high-tech enterprise integrating design, R&D, production, sales, and service. We have been deeply involved in the fields of safety monitoring equipment, industrial instruments, and industrial environment for 15 years. Adhering to the concept that "science and technology are the primary productive forces," we are committed to providing global customers with high-quality products and services, offering one-stop solutions. We serve over 200 international clients in 30 countries. We have a 1000-square-meter production base, a professional team of 100 people, and strictly implement the ISO9001 quality management system. From pre-sales consultation and sample confirmation to after-sales follow-up, we provide dedicated customer service to ensure worry-free procurement.

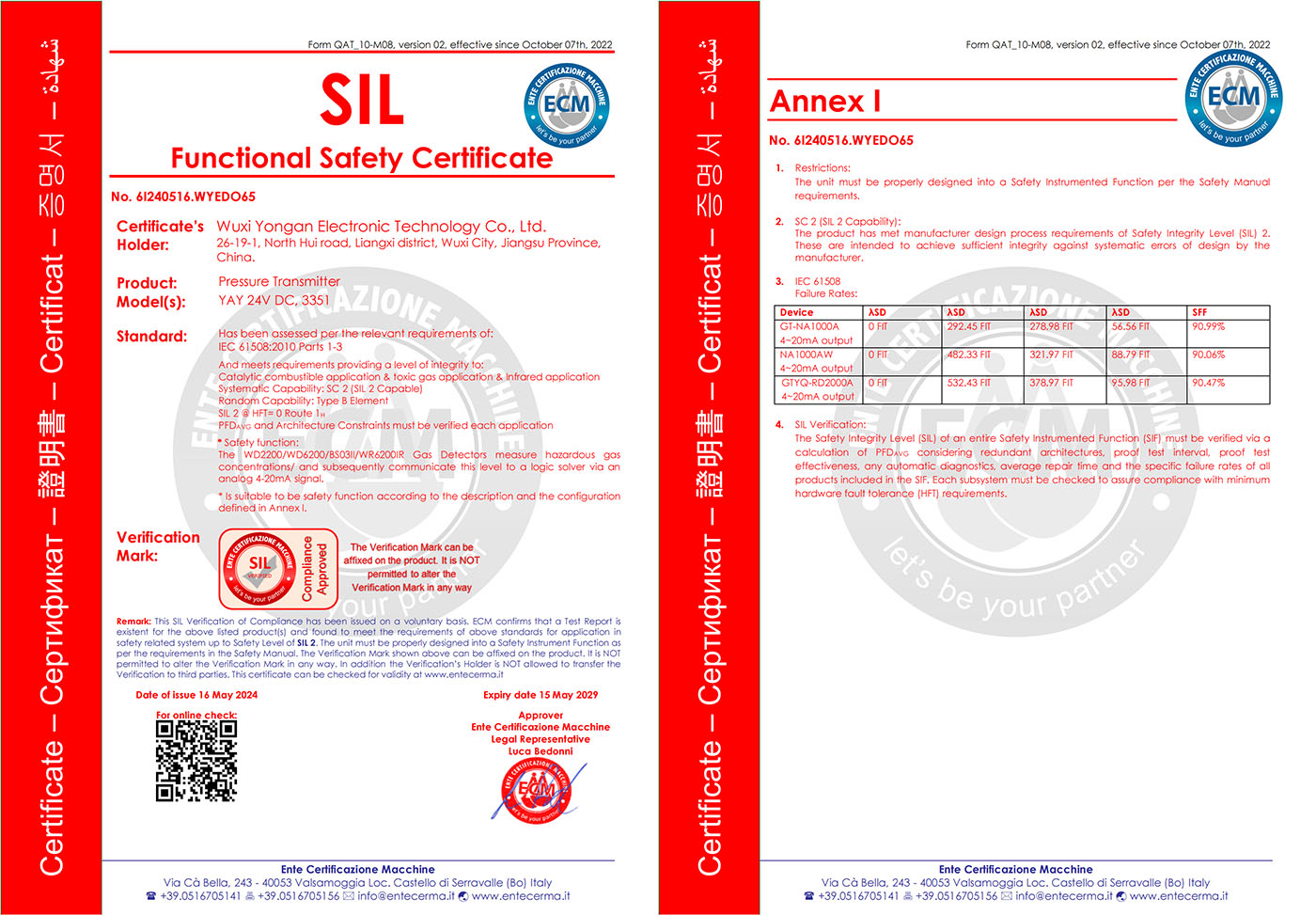

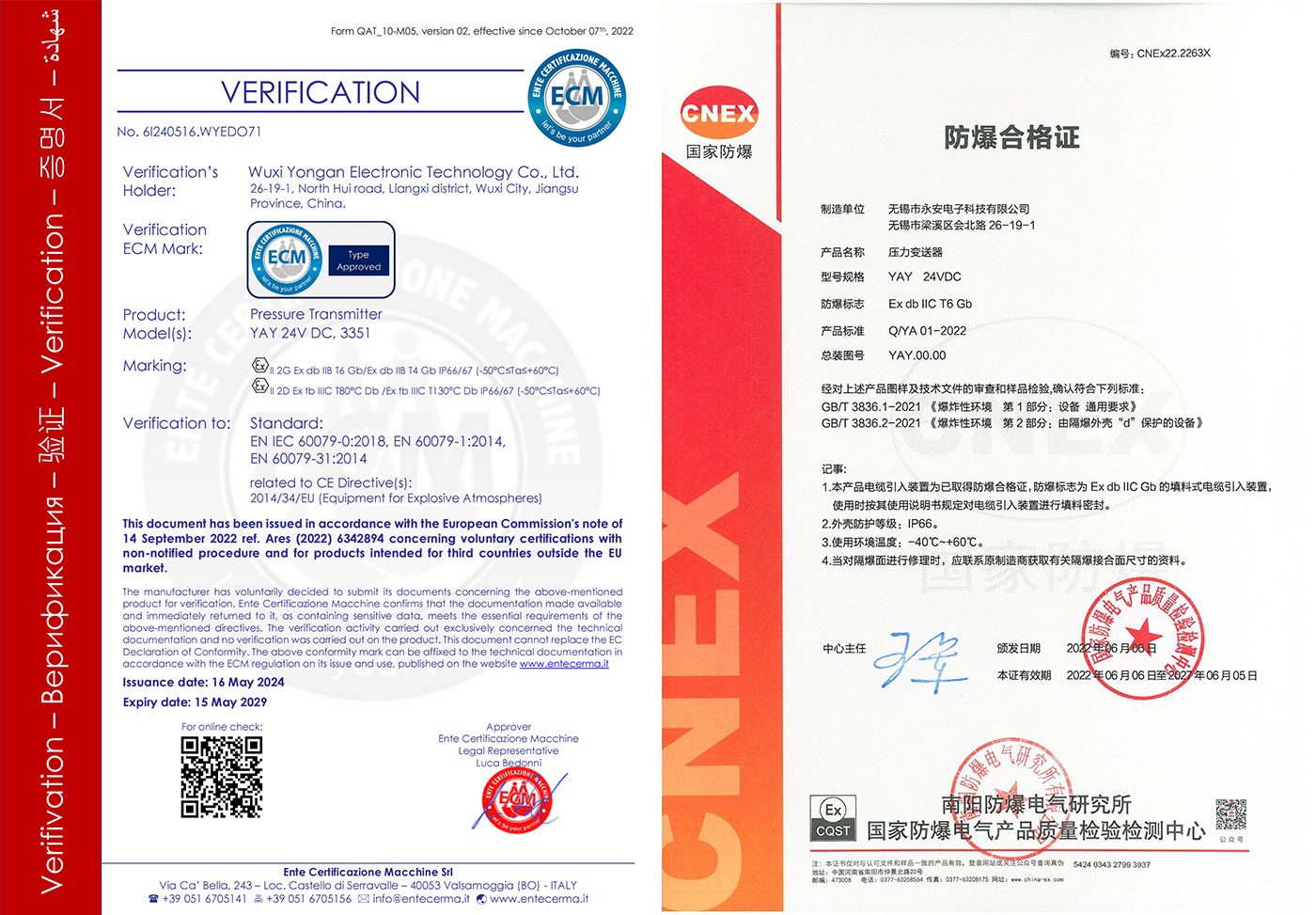

Certificate:
FAQ;
Q1:What is the lead time for 4-20mA pressure transmitter?
For quantities of 1 to 20 units, the lead time is approximately 10 days;
For 20 to 100 units, the lead time is approximately 10 to 15 days.
Q2:What shipping methods do you use for pressure transmitters?
We typically ship via FedEx UPS or DHL. If you have a freight forwarder in China, we can also ship the goods to your forwarder free of charge.
Q3: Do your pressure transmitters support custom logos?
Yes, we can customize your company logo and company name on the nameplate.
Q4: How is a pressure transmitter calibrated? How often should it be calibrated?
A: Zero-point and full-scale calibration are standard procedures—configuring the transmitter so that its 4 mA output corresponds to the Lower Range Value and its 20 mA
output corresponds to the Upper Range Value. It is recommended to perform calibration every 6 to 12 months; for high-precision, critical applications, this interval may be shortened.
