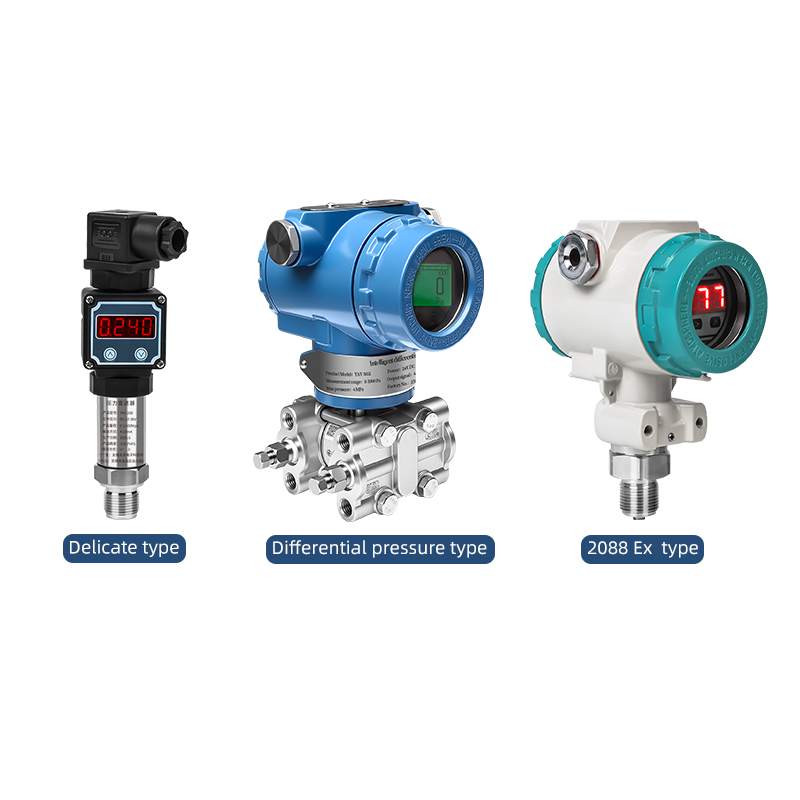

OEM Custom ExdIICT4 4-20mA HART Smart Differential Pressure Transmitter Digital Pressure Sensor for Oil & Gas
Brand Yongan Electronics
Product origin Wuxi, Jiangsu Province
Delivery time 1-10piece（5-7 days） ；20~100piece（10-15 days）
Supply capacity Annual Production Volume 5,000+
1. Oil and Gas Industry: Smart Differential Pressure Transmitter for Wellheads, Pipeline Flow Measurement, and Refinery Reactor Pressure Monitoring
2. Water Treatment and Environmental Protection Industry: Industrial Pressure Sensor for Pipe Network Differential Pressure, Pumping Station Flow Control, and Filter Blockage Detection
3. Chemical and Pharmaceutical Industries: ATEX-Grade (ExdIICT4) Explosion Proof Pressure Transmitter for Chemical Reactors, Clean Piping Systems, and Sterile Process Lines
Product Application:
1. Oil and Gas Industry: Smart Differential Pressure Transmitter for Wellheads, Pipeline Flow Measurement, and Refinery Reactor Pressure Monitoring
2. Water Treatment and Environmental Protection Industry: Industrial Pressure Sensor for Pipe Network Differential Pressure, Pumping Station Flow Control, and Filter Blockage Detection
3. Chemical and Pharmaceutical Industries: ATEX-Grade (ExdIICT4) Explosion Proof Pressure Transmitter for Chemical Reactors, Clean Piping Systems, and Sterile Process Lines
4. Power and Energy Industries: High-Stability Pressure Transducer for Boiler Drum Level, Steam Turbine Differential Pressure, and Thermal Pipe Networks
5. Food and Beverage Industry: Hygienic Level & Differential Pressure Transmitter for Product Transfer Pipelines, Fermentation Tank Level Control, and Filling Systems
6. Pulp & Paper and Textile Industries: Corrosion-Resistant Pressure Transmitter (Hastelloy C / Tantalum Diaphragm) for Pulp Digester, Coating Machine, and Dyeing Vessel Pressure Monitoring
7. Metallurgical Industry: Rugged Pressure Transmitter for Hydraulic Systems, Blast Furnace Gas Pressure, and Cooling Water Differential Pressure
Product Specification Sheet:
Model Number | YAY-3051 |

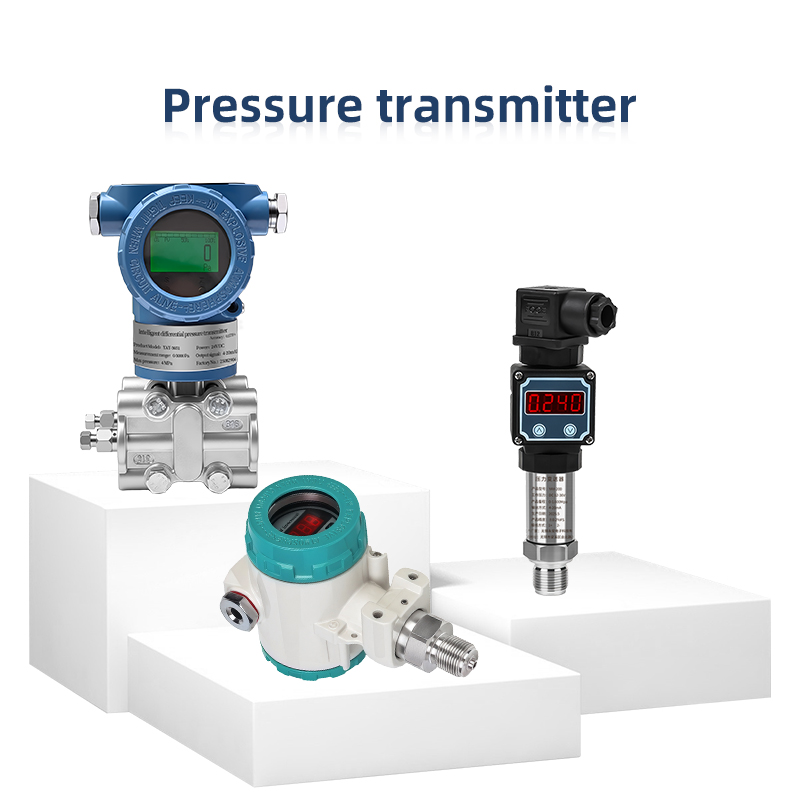

Product Name | Smart Differential Pressure Transmitter |
Pressure Range | -100kPa ~ 0.5kPa ~ 40MPa (Customizable) |
Measured Medium | Liquid, Gas, Steam |
Power Supply | DC12-36V (24VDC recommended) |
Language Support | English |
Output Signal | 4-20mA + HART, RS485 |
Display | LED display (optional) |
Ambient Temperature | -20°C ~ +80°C (depending on fill fluid and seal ring) |
Relative Humidity | <90% RH (non-condensing) |
Connection Method | Welded pipe connection / Integrated three-valve manifold / Wafer-type flange |
Thread Specifications | NPT1/4 (standard), Customizable: M20×1.5, NPT1/2, G1/2, etc. |
Explosion-proof Marking | Exd IIC T4 (Flameproof) |
Protection Class | IP65 |

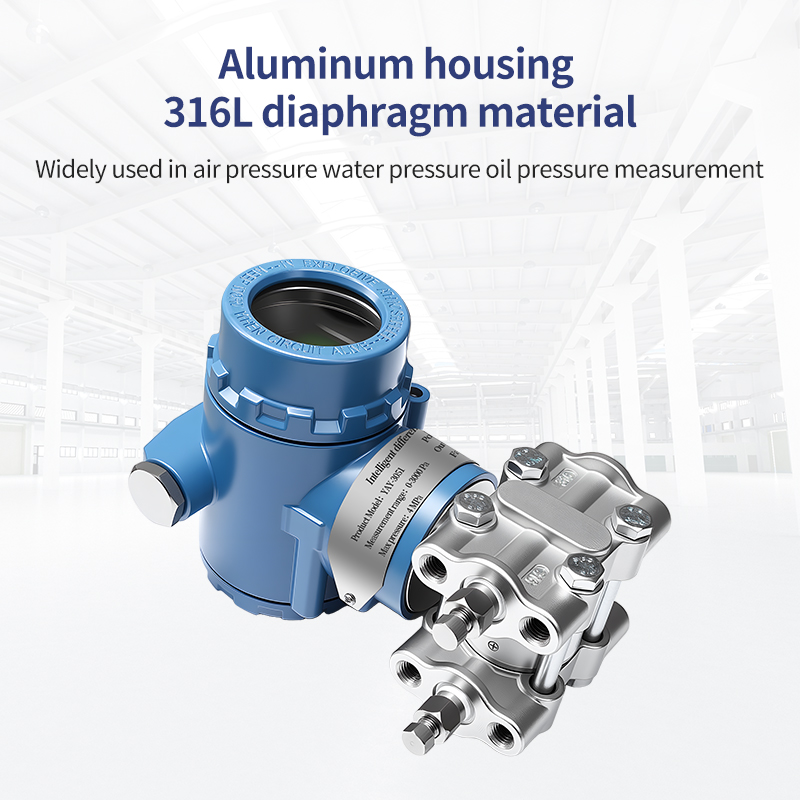

Housing Material | Aluminum alloy with epoxy resin coating |
Wetted Material (Diaphragm) | Stainless steel 316L, Hastelloy C, Tantalum, Titanium, Monel, PTFE-lined |
Fill Fluid | Silicone oil (standard) |
Seal Ring | Nitrile rubber (standard) |
Product advantages:
1. Comprehensive Certifications: CNEX, ATEX, SIL, ISO 9001, ISO 14001, ISO 45001, Exd IIC T4, IP65 – fully compliant for hazardous environments.
2. Professional Technical Support: Our engineers provide pre-sales and post-sales assistance. The YAY-3051 features self-diagnosis, digital compensation, and adjustable damping.
3. Rapid After-Sales Response: Quick fault diagnosis with immediate replacement or corrective solution. Modular design means low maintenance.
4. Brand Customization: Custom logo/name on housing, plus optional diaphragm materials (316L, Hastelloy C, Tantalum, Titanium, Monel, PTFE-lined), fill fluid, seal ring, and process connection.
Enterprise advantages
Company Introduction:

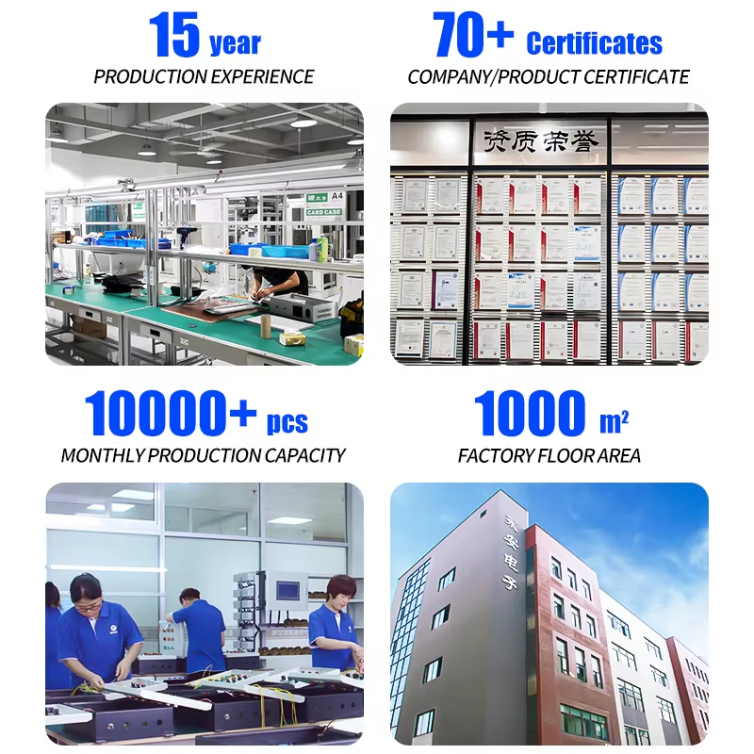

Wuxi Yong'an Electronic Technology Co., Ltd., established in 2011 and headquartered in Wuxi, China, is a high-tech enterprise integrating design, R&D, production, sales, and service. We have been deeply involved in the fields of safety monitoring equipment, industrial instruments, and industrial environment for 15 years. Adhering to the concept that "science and technology are the primary productive forces," we are committed to providing global customers with high-quality products and services, offering one-stop solutions. We serve over 200 international clients in 30 countries. We have a 1000-square-meter production base, a professional team of 100 people, and strictly implement the ISO9001 quality management system. From pre-sales consultation and sample confirmation to after-sales follow-up, we provide dedicated customer service to ensure worry-free procurement.
Certificate:
FAQ：
Q1: What shipping methods do you use for pressure transmitters?
We typically ship via FedEx, UPS, or DHL. If you have a freight forwarder in China, we can also ship the goods to your forwarder free of charge.
Q2: Do your pressure transmitters support custom logos?
Yes, we can customize your company logo and company name on the nameplate. Full brand customization including housing logo is also available.
Q3: How is a pressure transmitter calibrated? How often should it be calibrated?
Zero-point and full-scale calibration are standard procedures. It is recommended to perform calibration every 6 to 12 months; for critical applications, this interval may be shortened.
Q4: What output signals are available?
The standard output is 4-20mA with HART protocol. RS485 Modbus is also available.
Q5: What is the accuracy of the YAY-3051?
Accuracy options: ±0.075%FS, ±0.1%FS, ±0.2%FS, or ±0.5%FS.
Q6: What explosion-proof ratings does it have?
Flameproof Exd IIC T4 with IP65 protection, suitable for hazardous environments.
Q7: What diaphragm materials can I choose?
Stainless steel 316L (standard), Hastelloy C, Tantalum, Titanium, Monel, and PTFE-lined.
Q8: What power supply is required?
DC12-36V, with 24VDC recommended.
Q9: What pressure types does it support?
DR (Micro differential pressure), DP (Differential pressure), GP (Gauge pressure), AP (Absolute pressure), and HP (High static pressure).
Q10: What industries is it suitable for?
Oil & gas, chemical, pharmaceutical, power generation, food & beverage, water treatment, pulp & paper, textile, and metallurgical industries.
