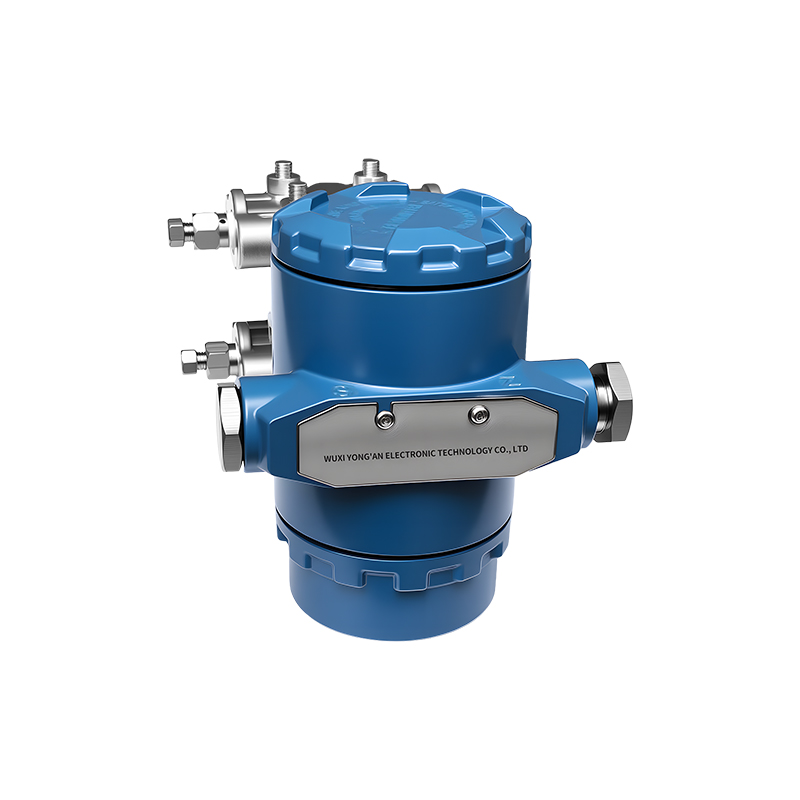

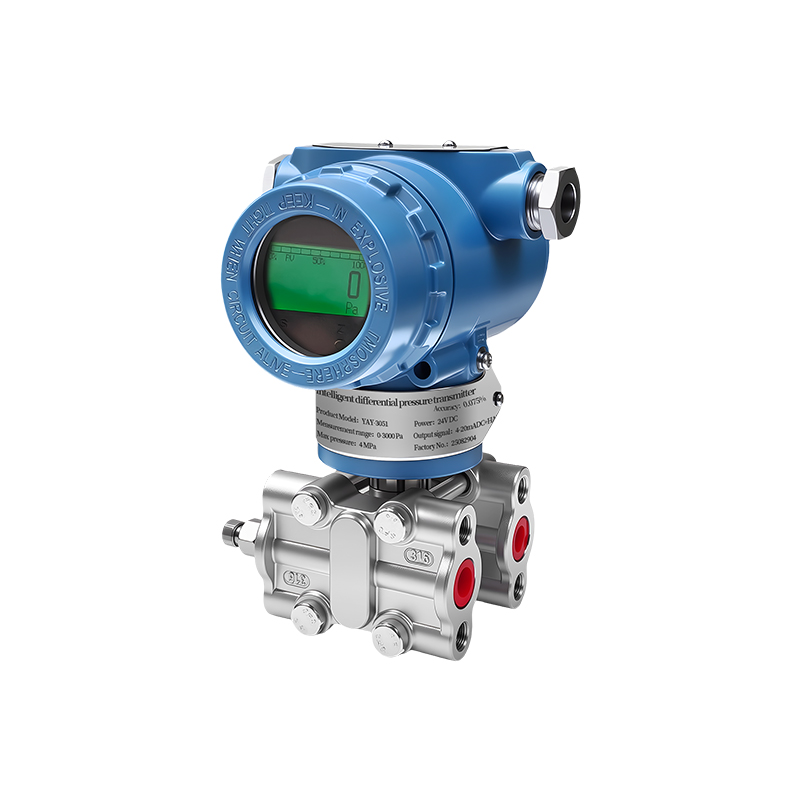

YAY-3051 High-Stability Differential Pressure / Level Transmitter – Cost-Effective Solution for Harsh Environments

Product Application:

1. Petrochemical & High-Temperature Conditions: Steam pipeline differential pressure measurement, reactor pressure/level monitoring (withstand up to 120°C+)

2. Highly Corrosive Media: Pressure and level measurement for acid/alkali/salt solutions (Hastelloy C / Tantalum / PTFE-lined diaphragm optional)

3. Outdoor & Dusty Environments: Differential pressure monitoring for dust collectors, silo level monitoring in power, cement, and mining industries (IP65 protection)

4. High Overload Protection Needs: Differential pressure monitoring for oilfield water injection and high-pressure pipeline filters (strong anti-unidirectional overload capability)

5. General Cost-Effective Replacement Scenarios: General pressure/level control in food, pharmaceutical, and textile industries – pursuing high value for money

6. Steam & High-Temperature Liquid Systems: Boiler drum level, heat exchanger differential pressure (high-temperature fill fluid optional)

7. Wastewater Treatment & Water Supply/Drainage: Pump suction/discharge differential pressure, tank level, pipeline clogging warning

Product Specification Sheet:

Product advantages:

1. High Cost-Effectiveness: Core sensor chip imported, localized production – performance comparable to imported brands, more competitive pricing

2. Strong Harsh Environment Suitability: Supports high-temperature fill fluid, corrosion-resistant diaphragms (Hastelloy C/Tantalum/PTFE-lined), oil-resistant seal rings (FKM) – suitable for steam, acids/alkalis, solvents and other aggressive media

3. Long-Term Durability: No mechanical moving parts, vibration-resistant, strong anti-unidirectional overload, low maintenance, long-term stable quality

4. High-Stability Digital Compensation: Digital temperature and static pressure compensation technology – significantly suppresses temperature drift, reliable long-term accuracy

5. Flexible Configuration: Range, accuracy, diaphragm, fill fluid, seal ring, process connection all customizable

6. Explosion Proof & Protection: Exd IIC T4 flameproof + IP65 protection – suitable for hazardous gas and dust environments

Enterprise advantages

Company Introduction:

Wuxi Yong'an Electronic Technology Co., Ltd., established in 2011 and headquartered in Wuxi, China, is a high-tech enterprise integrating design, R&D, production, sales, and service. We have been deeply involved in the fields of safety monitoring equipment, industrial instruments, and industrial environment for 15 years. Adhering to the concept that "science and technology are the primary productive forces," we are committed to providing global customers with high-quality products and services, offering one-stop solutions. We serve over 200 international clients in 30 countries. We have a 1000-square-meter production base, a professional team of 100 people, and strictly implement the ISO9001 quality management system. From pre-sales consultation and sample confirmation to after-sales follow-up, we provide dedicated customer service to ensure worry-free procurement.

Certificate:

FAQ

Q1: What is the biggest advantage of the YAY-3051 compared to ordinary differential pressure transmitters?

The main advantages are high cost-effectiveness + harsh environment suitability. At the same price point, it supports more corrosion-resistant diaphragms and high-temperature fill fluids, with stronger overload capability.

Q2: What should I pay attention to when measuring steam or high-temperature liquids?

It is recommended to choose high-temperature fill fluid and use impulse piping with condensation cooling. The ambient temperature of the housing must be kept within -20~80°C.

Q3: How to select the diaphragm for strong acids or alkalis?

1.Dilute sulfuric acid/hydrochloric acid: Hastelloy C recommended

2.Concentrated acids / high-temperature acids: Tantalum diaphragm recommended

3.Strong alkalis or chlorine-containing media: Titanium diaphragm recommended

4.Extremely corrosive media with particles: PTFE-lined diaphragm recommended

Q4: Where can Exd IIC T4 explosion-proof rating be used?

Suitable for Zone 1 and Zone 2 explosive gas environments (e.g., oil & gas, chemical, painting shops) as well as combustible dust environments (with IP65).

Q5: What is the difference between 0.075%FS and 0.5%FS accuracy? How to choose?

- 0.075%FS: For fiscal measurement / precision control (higher cost)

- 0.5%FS: For general industrial monitoring / level switch replacement (excellent cost-effectiveness)

All accuracy grades are available.

Q6: Can the output signal support both 4-20mA and RS485 at the same time?

Standard products are one or the other. Dual-output is available upon customization request.

Q7: There is no 24VDC power supply on site. Can I use 12V?

Yes. Wide voltage power supply DC12-36V, but note that the output load resistance should be reduced accordingly.

Q8: Any special installation requirements for flameproof transmitters?

The cable entry must use an explosion-proof sealing connector. The housing must be grounded. Do not open the cover while powered.

Q9: Can this product measure level?

Yes. By measuring the differential pressure between the bottom and top of a vessel, or using the hydrostatic method (gauge pressure mode) for open tank level measurement.

Q10: Will it freeze if used outdoors in northern winters?

The diaphragm and fill fluid themselves are low-temperature resistant (-20°C), but the medium in the impulse piping may freeze. Heat tracing or draining protection is recommended.
